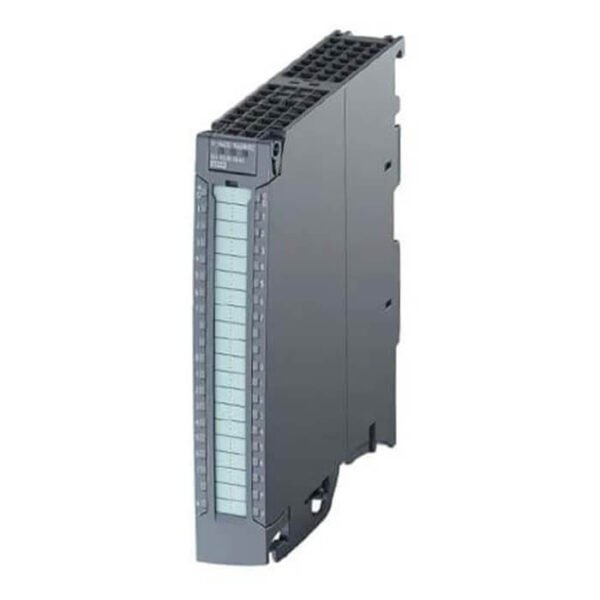

Siemens digital input output module DI16x 24VDC BA 6ES7523-1BL00-0AA0
The Siemens DI16x 24VDC Digital I/O Module BA 6ES7523-1BL00-0AA0 is a modular I/O module designed for use with a programmable logic controller (PLC). This module has 16 digital inputs and 16 digital outputs, all of which are designed for use with 24 V DC systems. Inputs and outputs are isolated from each other to reduce the risk of electrical interference.
DI 16x 24VDC BA Specifications:
- SIMATIC S7-1500 discrete I/O module
- DI 16x 24VDC BA
- 16 channels in a group of 16 channels
- input delay type. 3.2 ms input class 3 (IEC 61131)
- DQ16XDC 24 V/0.5 A BA; 16 channels in group 8; 4A per group; the module supports safe shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Class 2 / PL c according to EN ISO 13849-1:2015
- Supplied with push-in connector
