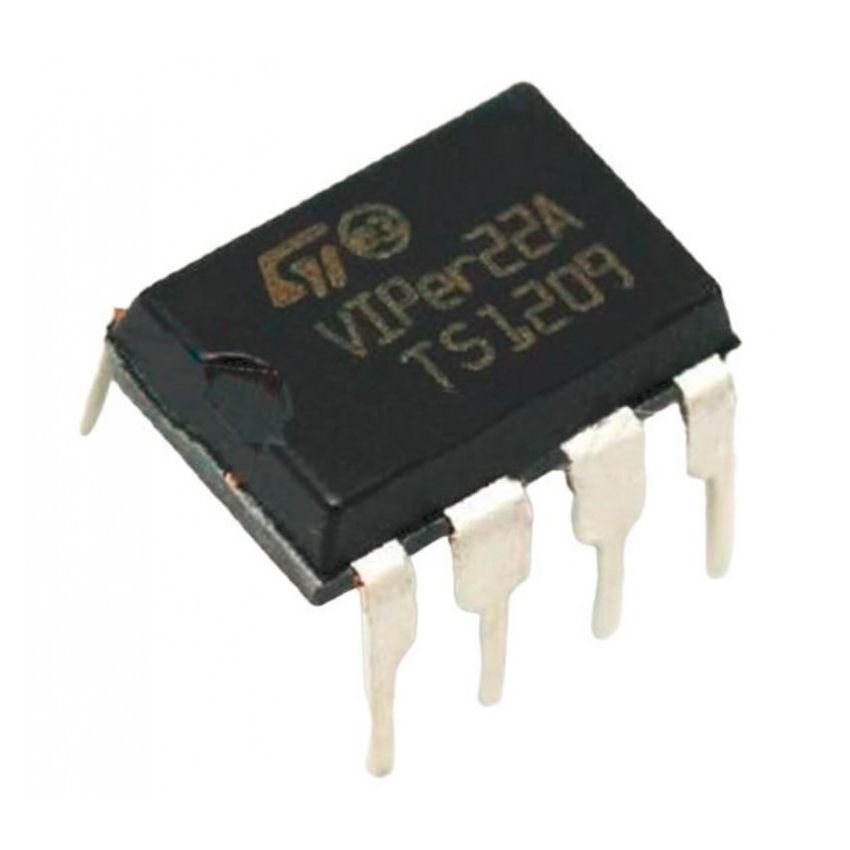

VIPER22A
The VIPER22A DIP-8 is a highly efficient low power OFF-line SMPS primary switcher designed to integrate a PWM controller and a high voltage power MOSFET on a single silicon chip. With its fixed 60 kHz switching frequency and current mode control, this device delivers reliable performance in applications such as battery chargers, TV and monitor standby supplies, and motor controllers.
The integrated over-temperature, over-current, and over-voltage protection ensures robust operation in harsh environments. Offering automatic burst mode for low load conditions and high efficiency, the VIPER22A helps reduce power consumption, making it compliant with stringent global energy-saving requirements.Key Features :
- Integrated PWM controller and high voltage MOSFET.
- 9V to 38V wide range VDD voltage with fixed 60 kHz switching frequency.
- Provides up to 20W output in DIP-8 package.
- Includes auxiliary under-voltage lockout with hysteresis for stability.
- Over-temperature, over-current, and over-voltage protection with auto-restart.
- Excellent thermal management with thermal shutdown at 140°C and hysteresis of 40°C.
