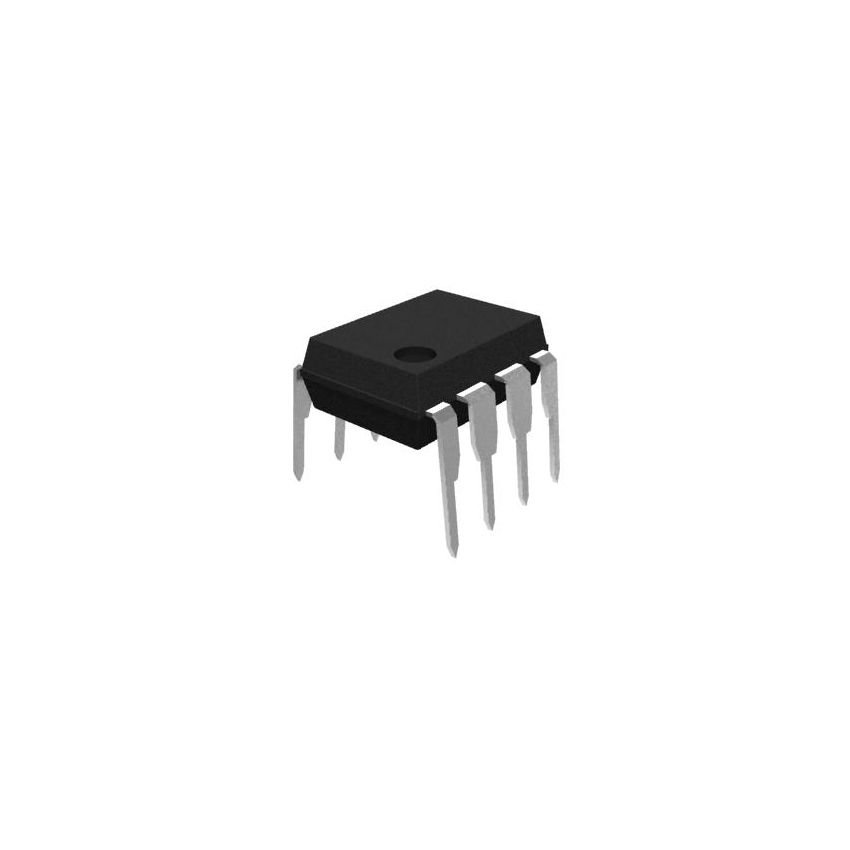

MSGEQ7P, 7-Band Graphic Equalizer IC, DIP-8
- 7-Band Audio Spectrum Analyzer: Separates audio input into seven frequency bands (63Hz to 16kHz) for real-time analysis.
- DIP-8 Package: Through-hole mounting for easy prototyping and integration into standard PCBs.
- On-Chip Oscillator: Reduces external component count, requiring only a resistor and capacitor to set the clock frequency.
- Low Power Consumption: Operates with less than 1mA typical supply current, ideal for battery-powered devices.
- Multiplexed DC Output: Provides a DC representation of amplitude for each frequency band, making it compatible with microcontrollers and digital circuits.
- Wide Operating Voltage Range: Supports 2.7V to 5.5V, ensuring broad compatibility with different power sources.
