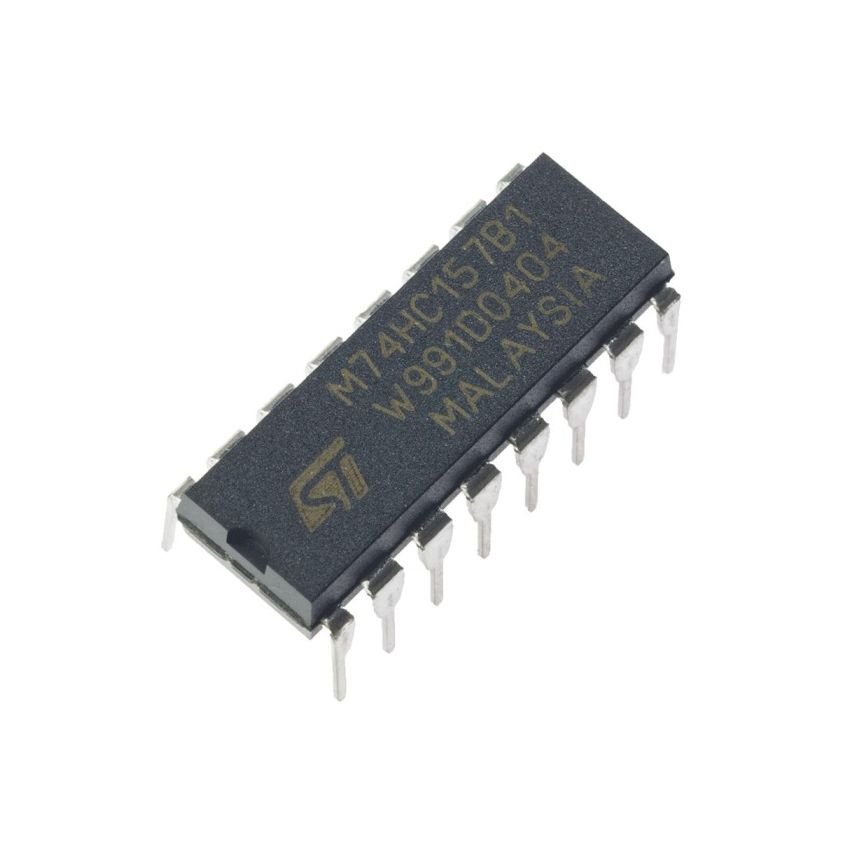

M74HC157B1, Quad 2-Channel Multiplexer, DIP-16
- Quad 2-Channel Multiplexer: Selects four bits of data from two sources under the control of a common select input, facilitating efficient data routing.
- High-Speed CMOS Technology: Achieves high-speed operation similar to equivalent LSTTL while maintaining low power dissipation.
- Low Power Consumption: Features a maximum quiescent current (ICC) of 4 µA at TA = 25C, ensuring energy-efficient performance.
- Wide Operating Voltage Range: Operates from 2V to 6V, providing flexibility for various applications.
- High Noise Immunity: Offers VNIH and VNIL of 28% VCC (min), ensuring reliable operation in noisy environments.
- Balanced Propagation Delays: Ensures symmetrical output impedance and balanced propagation delays, enhancing signal integrity.
