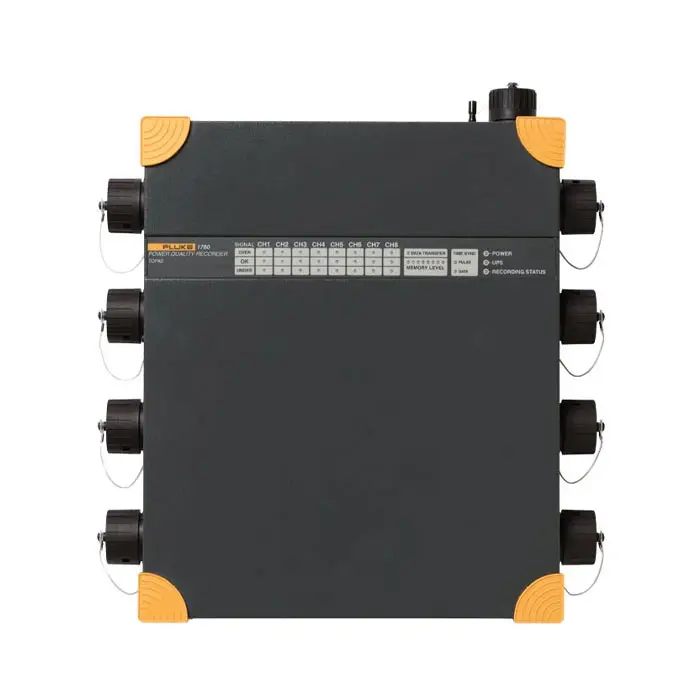

Fluke 1760TR Basic Three-Phase Power Quality Recorder

Fluke 1760TR Basic Three-Phase Power Quality Recorder

The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems, in medium- and low-voltage networks. The Fluke 1760 provides exceptional flexibility with the ability to customize thresholds, algorithms, and measurement selections. The 1760 power recorder captures the most comprehensive details on user-selected parameters; the supplied PQAnalyze application software enables users uses the in depth measurement and produce sophisticated analysis and reports

Fluke 1760TR Basic Three-Phase Power Quality Recorder specifications

• Statistical evaluation: Power quality statistics according to EN50160 and DISDIP tables like ITIC, CEBEMA, ANSI
• Continuous recording: Fluke 1760 records rms values together with corresponding minimum and maximum values for:
  • Voltage
  • Current
  • Power P, Q, S
  • Power Factor
  • kWh
  • Flicker
  • Unbalance
  • Frequency
  • Harmonics/Interharmonics
  Continuously with the following time aggregations:
  Day
  10 min
  Free Interval, e.g.: 15 min, 2 h
• Intrinsic uncertainty: refers to reference conditions and is guaranteed for two years
• Quality system: developed, manufactured as per ISO 9001: 2000
• Data memory:2 GB Flash memory depending on model
• Interfaces: Ethernet (100 MB/s), compatible to Windows® 98/ME/NT/2000/XP RS 232, external modem via RS 232
