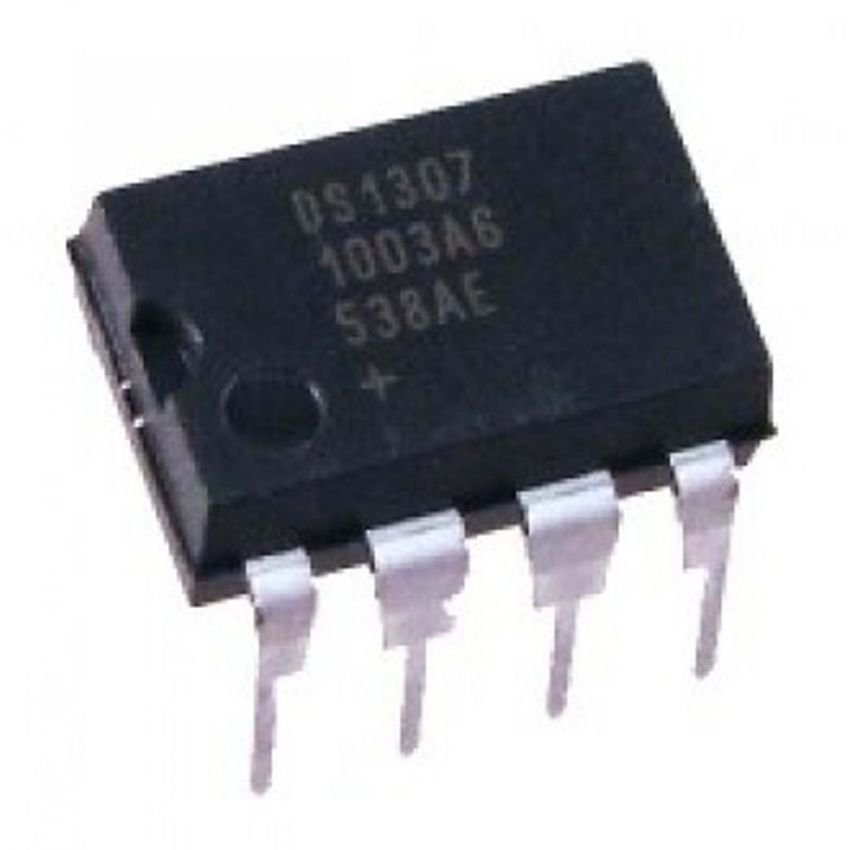

DS1307
- Real-Time Clock/Calendar: Tracks seconds, minutes, hours, day, date, month, and year with leap year compensation up to 2100.
- Nonvolatile SRAM: 56 bytes of storage for user data retention.
- I²C Serial Interface: Simple 2-wire communication for easy integration with microcontrollers.
- Programmable Square Wave Output: Configurable output frequencies of 1 Hz, 4 kHz, 8 kHz, or 32 kHz.
- Battery Backup Capability: Ensures uninterrupted operation with low power consumption in battery mode (<500 nA).
- Compact DIP-8 Package: Suitable for prototyping and through-hole designs.
