AM2 – 6ED1055-1MA00-0BA2 SIEMENS

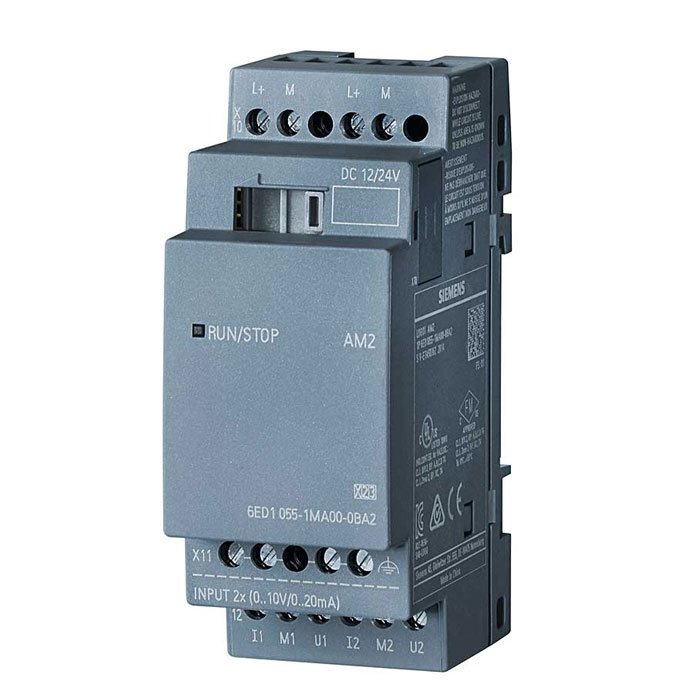

Siemens LOGO! AM2 – 6ED1055-1MA00-0BA2

The LOGO! 8 AM2 – 6ED1055-1MA00-0BA2 expansion module from Siemens has IP 20 protection and an input voltage of 12/24 V DC. It provides two analog inputs (0-10 V and 0/4-20 mA). The logo! 8 DM16 AM2 expansion module 6ED1055-1MA00-0BA2 is mounted on a 35 mm DIN rail. The 8 mini controllers are used, for example, in machine controls, pumps, filters, transport systems, monitoring devices, or building management systems.

For the LOGO! 8 AM2 datasheet click on the datasheet tab and for the LOGO AM2 manual pdf visit this link. also to buy LOGO! 8 AM2 and similar siemens products don’t hesitate to get in touch with us.

LOGO AM2 Features

• LOGO! AM2 expansion module
• Voltage supply: 12/24 V DC
• 2 AI (Analogue Inputs)
• 0-10 V or 0/4-20 mA
• for LOGO! 8

Siemens LOGO-AM2 Specifications:

• Design Expansion module
• Inputs 2
• Analogue useable inputs 2 x (0-10 V; 0/4-20 mA)
• Input/supply voltage 12/24 V DC
• Permissible range 10.8-28.8 V DC
• Dimensions (H x W x D) 36 (2 WM) x 90 x 53
• Mounting DIN-rail 35 mm (2 MW)
