6ES7231-5PA30-0XB0 SIEMENS

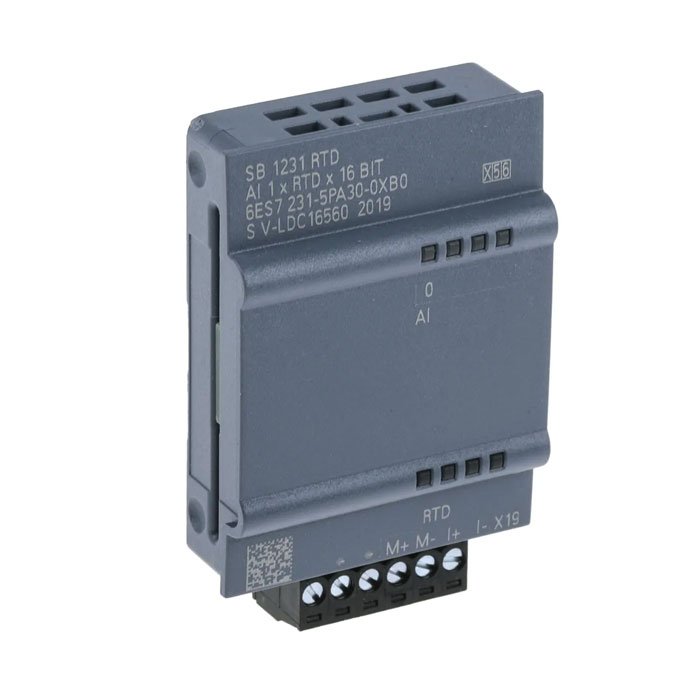

Siemens SB 1231 RTD 6ES7231-5PA30-0XB0

The SIMATIC S7-1200 Signal Board SB 1231 RTD – 6ES7231-5PA30-0XB0 from Siemens is a cost-effective expansion of your S7-1200 CPU with an analog input for Pt100 or Pt1000 resistance thermometers without requiring additional space. The SB 1231 RTD – 6ES7231-5PA30-0XB0 signal board is simply plugged into the front of the CPU.

SB-1231 RTD Features

• SIMATIC S7-1200
• Analog input
• SB-1231 RTD
• 1 analog input RTD
• Pt100 and Pt1000

Siemens SB-1231 RTD Specifications:

• Design: analog input module
• Analog inputs: 1 (Pt100/Pt1000)
• Dimensions (H x W x D): 38 x 62 x 21 mm
• Connection: Screw terminals
• Supply voltage: 24 V DC
• Input voltage max: 35 V DC
• Resolution:15 bit
