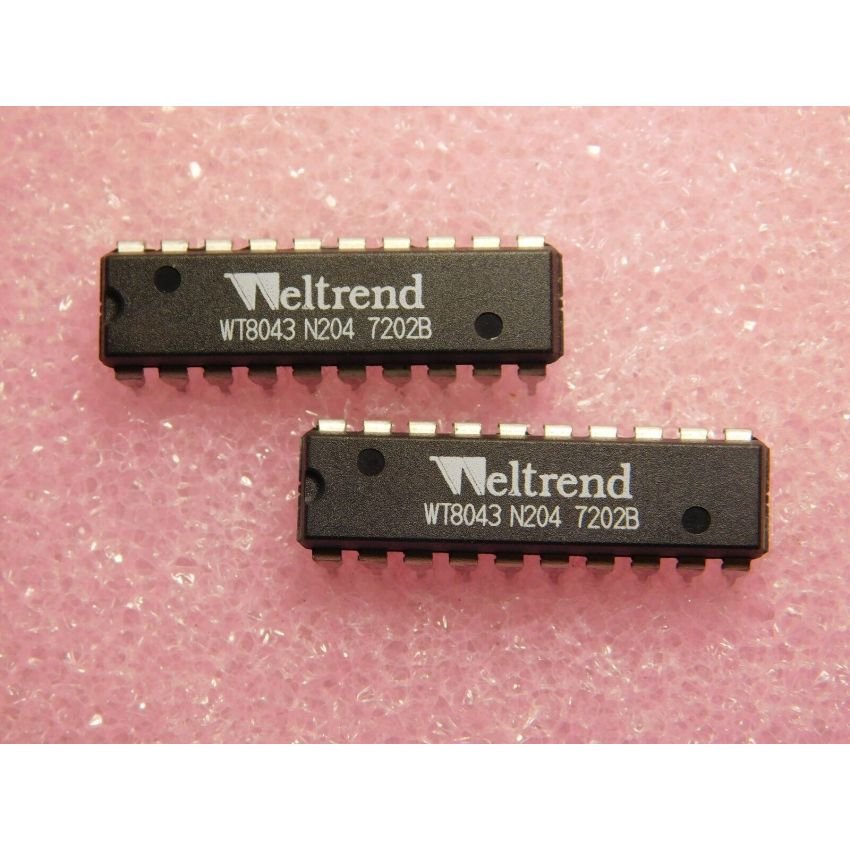

WT8043
- Multi-Sync Display Compatibility: Supports VESA VGA (640×480, 640×400, 640×350), SVGA (800×600), XGA (1024×768), and 1280×1024 video modes.
- Horizontal and Vertical Sync Processing: Capable of processing horizontal frequencies from 25KHz to 80KHz and vertical frequencies from 50Hz to 120Hz.
- Automatic Mode Selection: Detects and identifies standard and non-standard video modes using predefined frequency ranges.
- Sync-Tip Clamp Inputs: Ensures stable video signal processing by detecting and correcting sync signal polarity.
- Fixed Polarity Output Signals: Converts horizontal and vertical sync signals into negative polarity pulses, useful for display calibration.
- Multiple Package Variations: Available in DIP-16, DIP-20, and DIP-24 packages, allowing flexible integration into different designs.
