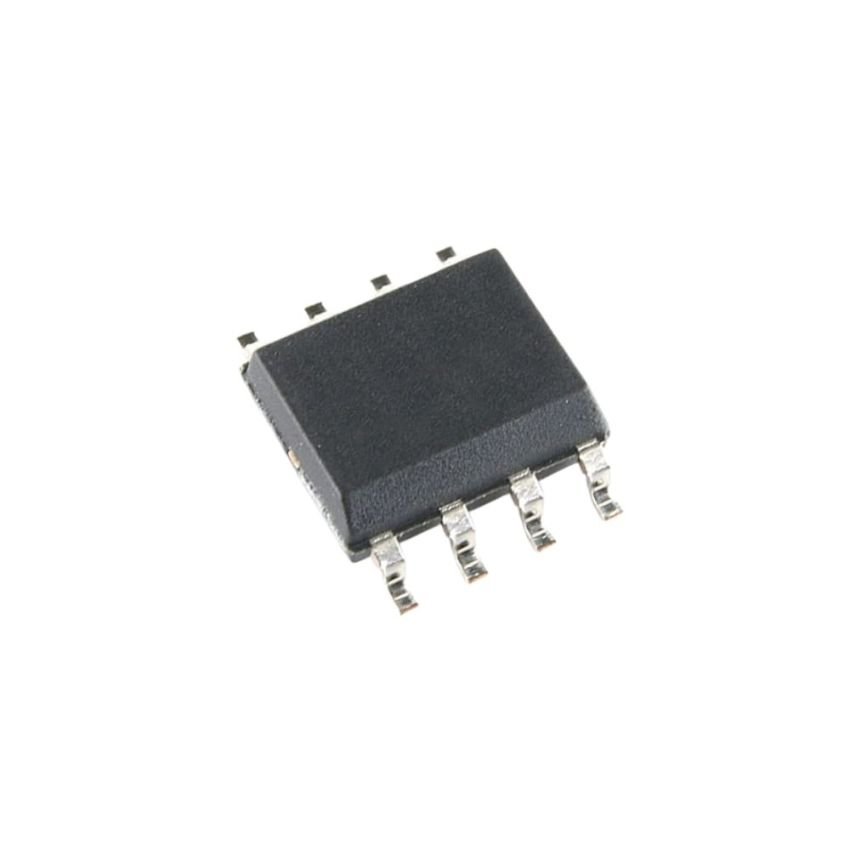

TL431I,Programmable Shunt Voltage Reference,SO-8
- Adjustable Output Voltage: Programmable output voltage ranging from 2.5V to 36V using two external resistors.
- Wide Operating Current Range: Operates efficiently with a cathode current range of 1mA to 100mA.
- Low Dynamic Impedance: Typical dynamic impedance of 0.22Ω ensures stability across a wide frequency range.
- Precision Voltage Reference: Offers 1% and 2% voltage precision options for high accuracy in applications.
- Compact SO-8 Package: Surface-mount design optimized for space-saving PCB layouts.
- High Temperature Stability: Maintains performance across a wide operating temperature range of -40°C to +105°C.
