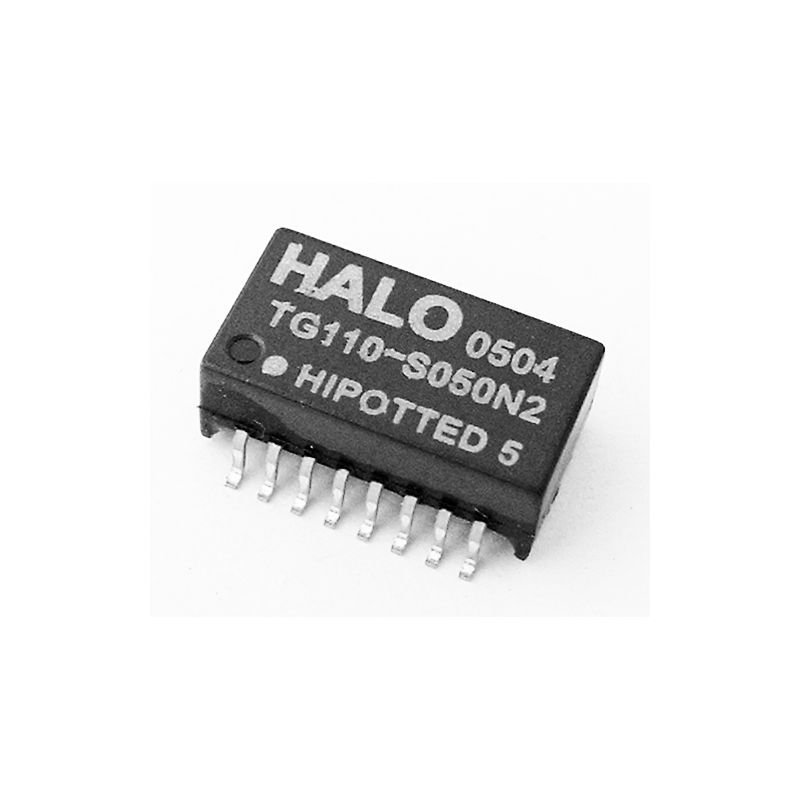

TG110-S050N2
The TG110-S050N2-SMD is a high-performance 10/100BASE-TX Ethernet Transformer, designed to provide signal integrity and isolation in networking applications. Compliant with IEEE 802.3u standards, it enables low insertion loss, high return loss, and superior crosstalk suppression, making it ideal for use in Ethernet controllers, switches, and network interface cards (NICs).
Featuring a 1500Vrms Hi-Pot isolation, the TG110-S050N2-SMD protects Ethernet transceivers from electrical surges, ensuring long-term reliability in networking environments. The patented open-frame construction enhances thermal performance, making it well-suited for high-speed and industrial networking solutions.
The surface-mount (SMD) package enables automated PCB assembly, reducing manufacturing costs and ensuring a compact design for high-density network equipment. With its RoHS compliance and UL recognition, this Ethernet transformer meets global safety and environmental standards.
Key Features :
- 10/100BASE-TX Ethernet Transformer: Designed for Fast Ethernet applications compliant with IEEE 802.3u standards.
- High Signal Integrity: Provides 1500Vrms Hi-Pot isolation to protect network components from electrical surges.
- Optimized for Low Insertion Loss: Ensures minimal signal degradation for high-speed data transmission.
- SMD Package for Compact Design: Surface-mount technology (SMT) enables efficient and automated PCB assembly.
- Patented Open Frame Construction: Improves heat dissipation and enhances durability in networking applications.
- RoHS Compliant and UL Recognized: Meets environmental and safety standards, ensuring reliability for commercial and industrial use.
