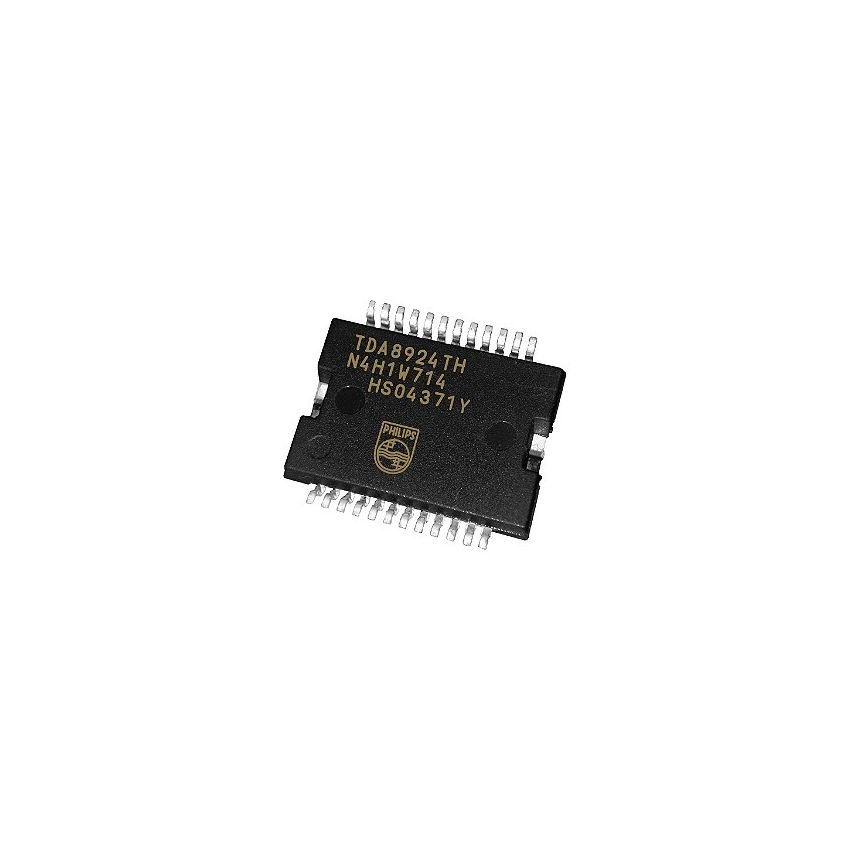

TDA8924TH

The TDA8924TH is a high-efficiency, Class-D audio power amplifier designed for applications requiring high output power with minimal heat dissipation. This 2 x 120 W amplifier operates in stereo mode with a 2 Ω load or in mono bridge-tied load (BTL) configuration for increased power.

It features low quiescent current, excellent ripple rejection, and internal protections against over-temperature and short circuits, making it ideal for use in television sets, multimedia systems, home audio, automotive sound systems, and other high-demand audio applications. The TDA8924TH comes in an HSOP24 package with a built-in heatsink, allowing for robust operation even under extended use.

Key Features :

• High Output Power: Delivers up to 2 x 120 W in mono BTL or stereo mode, ideal for high-power audio applications.
• High Efficiency (90%): Class-D architecture reduces heat generation and power waste, minimizing the need for cooling solutions.
• Versatile Operating Voltage: Operates on a wide supply voltage range from +12.5 V to +30 V, ensuring flexibility for various applications.
• Advanced Protection: Includes over-temperature shutdown, short-circuit protection across load and supply lines, and a supply voltage alarm.
• Selectable Audio Modes: Standby, mute, and operating modes accessible via the MODE pin for energy-efficient power management.
• Differential Audio Inputs: Supports differential inputs for better noise rejection and high-quality audio performance in complex environments.
