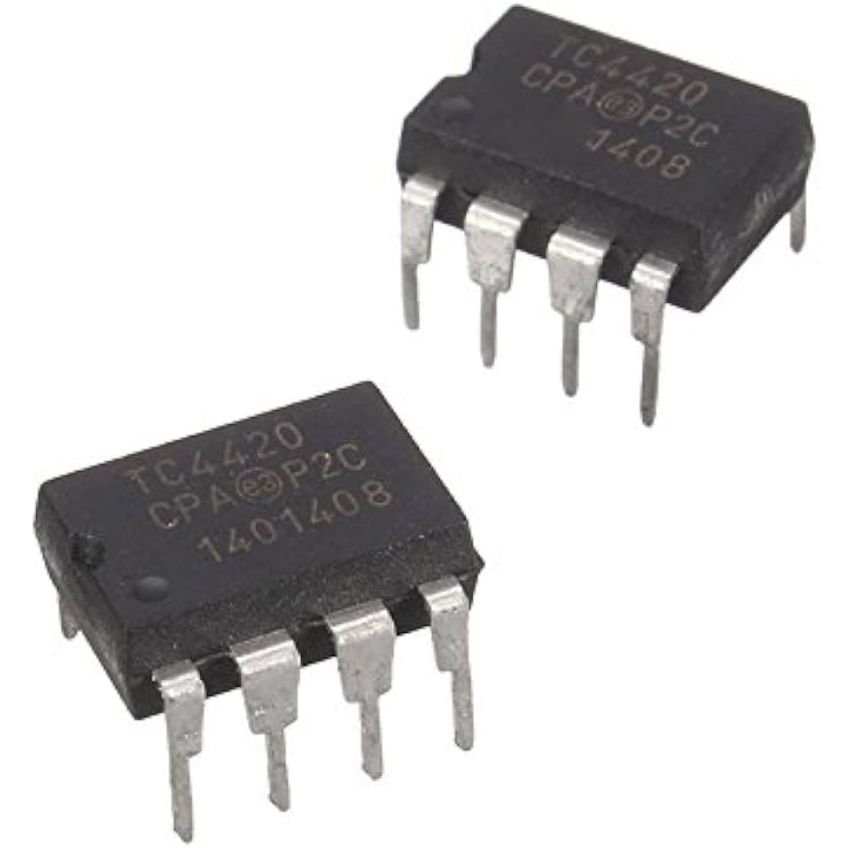

TC4420,High-Speed MOSFET Driver,4.5-18V,PDIP-8,6A
- High peak output current of 6A for fast switching of MOSFETs.
- Wide input supply voltage range from 4.5V to 18V.
- TTL/CMOS compatible inputs with negative swing up to -5V.
- Low output impedance of 2.5Ω to drive large capacitive loads up to 10,000pF.
- Matched rise and fall times of 25ns for precise control.
- Low power consumption with typical 450µA at logic high input.
