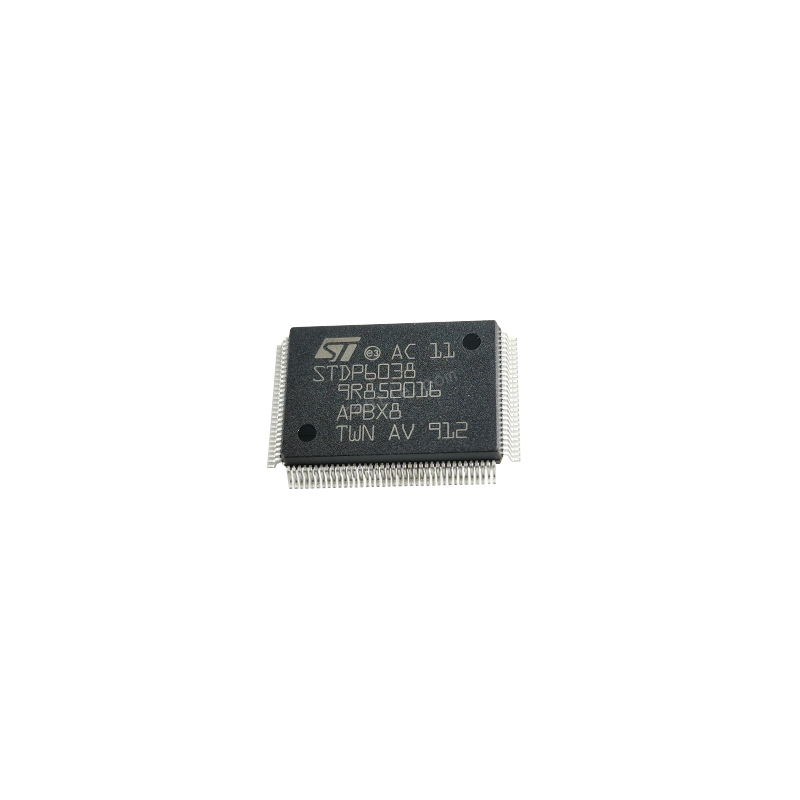

STDP6038

Programmable zoom and shrink scaling
DisplayPort 1.1a compliant receiver – 4-lane DisplayPort input
Ultra-Reliable DVI® receiver (165 MHz)
Triple-channel (10-bit) ADC (205 MHz) and PLL
Faroudja RealColor® color processing:– Image enhancement– 12-bit processing– Deep color support– xvYCC color space support
Dual channel 8-bit LVDS output
HDMI 1.3 RX integrated with I2S (L/R channel) or SPDIF audio output ports
Intel x86-compatible microcontroller with external SPI ROM interface
12-bit panel gamma correction and high-quality dithering for 8-bit and 6-bit panel interface
DDC controller for host interface purposes
PWM signals for backlight, audio volume control, etc.
Energy Spectrum Management® (ESM®)
Package: 128-pin PQFP
