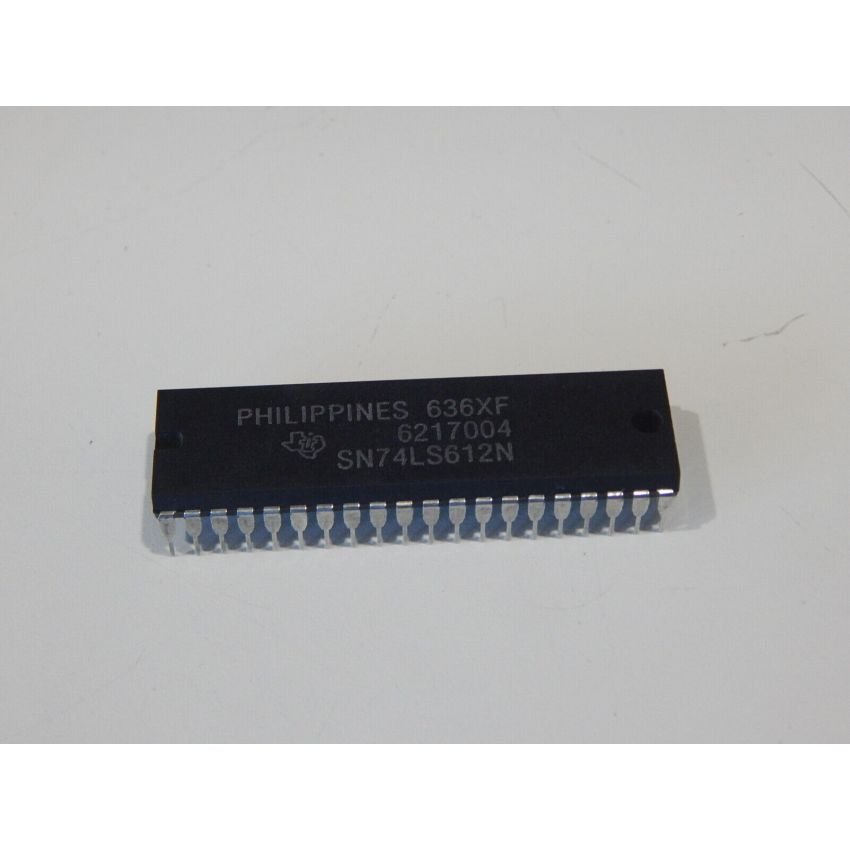

SN74LS612N-DIP Memory Mapping Chip
- Expands Address Lines: Increases the address lines from 4 to 12, enabling up to 4MB of addressable memory space, which enhances the memory capacity and versatility of microprocessor-based systems.
- Paged Memory Mapping: Designed specifically for paged memory mapping applications, allowing efficient segmentation and management of large memory spaces.
- Output Latches for Stable Addressing: Features output latches that provide stable and reliable memory address outputs, ensuring consistent performance during operations.
- Flexible Output Configurations: Offers a choice between 3-state or open-collector map outputs, allowing compatibility with various system architectures and configurations.
- Through-Hole DIP Package: Comes in a Dual In-line Package (DIP) for through-hole mounting, simplifying PCB design and providing durability for industrial and commercial applications.
- Microprocessor Compatibility: Compatible with a range of microprocessors, including the TMS9900, enabling easy integration into diverse computing environments.
