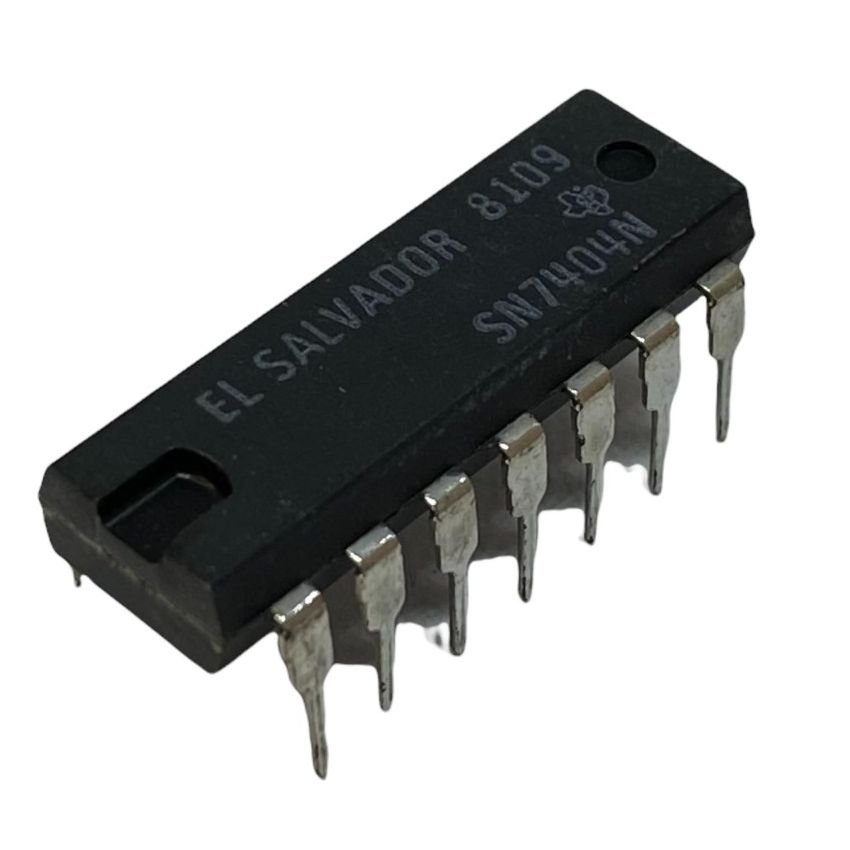

SN7404N DIP-14

Number of Circuits: 6 Circuit
Logic Family: TTL
Logic Type: Bipolar
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 4.75 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: 70 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Function: Inverter
High Level Output Current: – 400 uA
Input Type: TTL
Low Level Output Current: 16 mA
Number of Output Lines: 6 Output
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to 70 C
Output Type: CMOS
Product Type: Inverters
Propagation Delay Time: 22 ns
Unit Weight: 1 g
