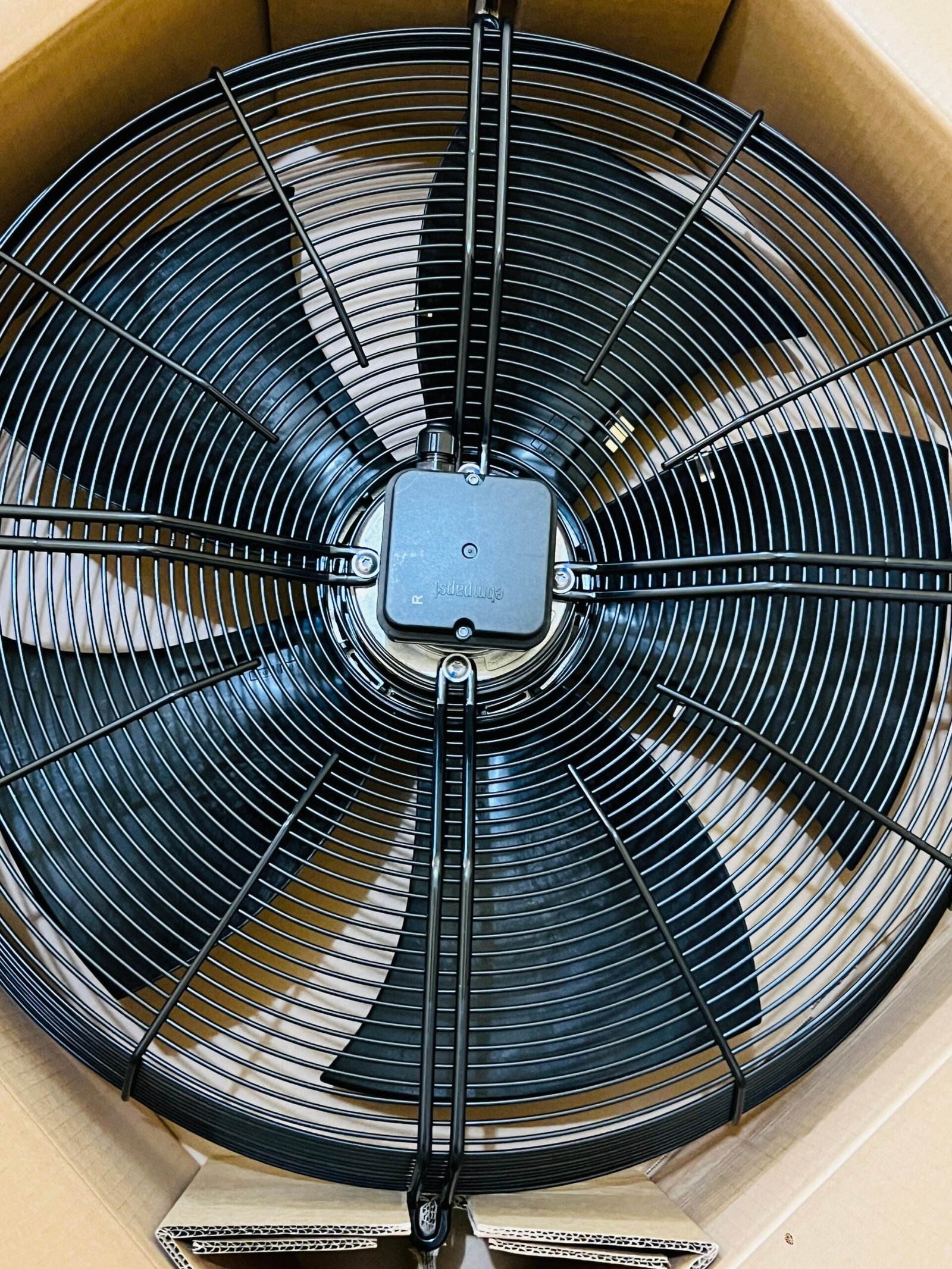

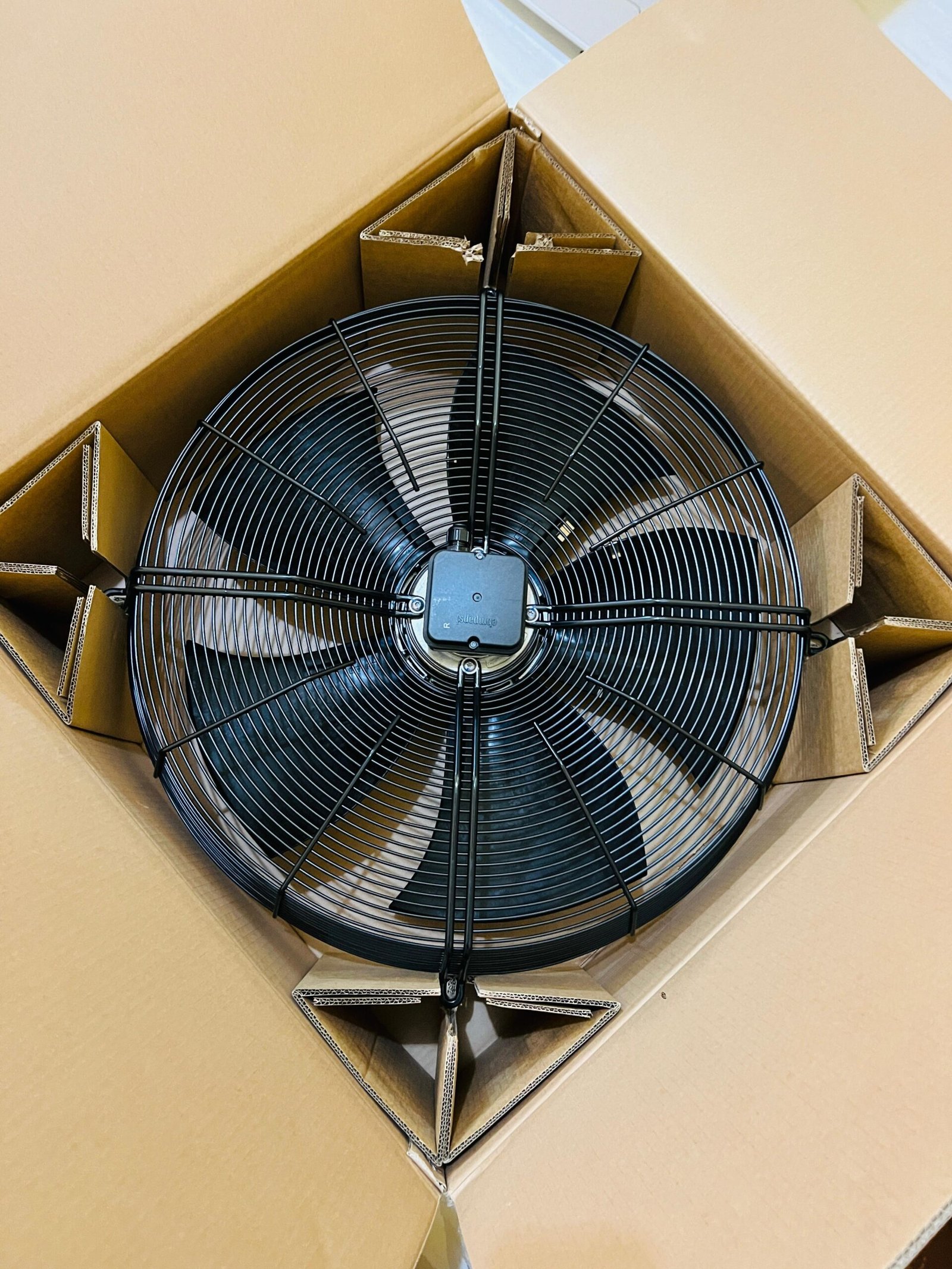

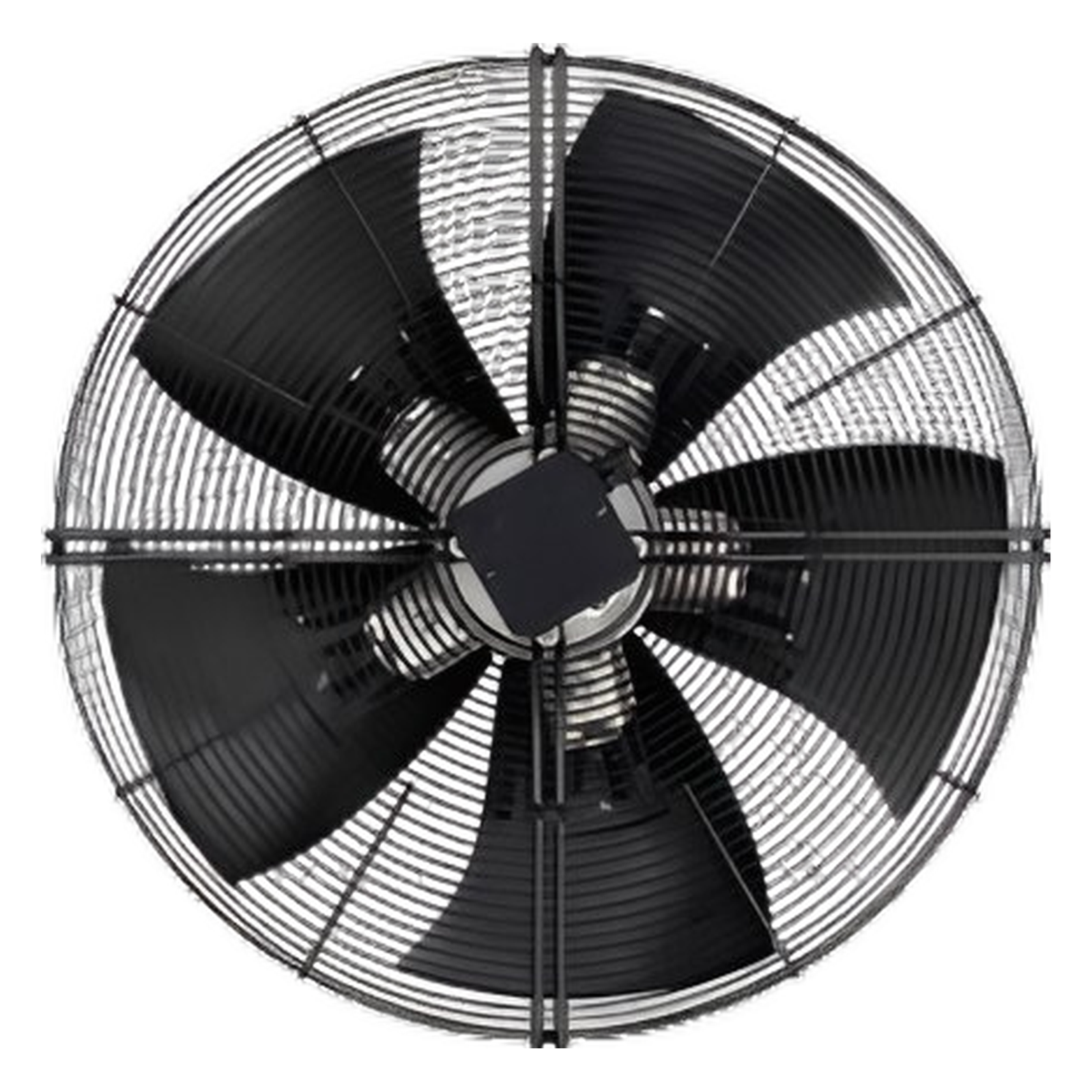

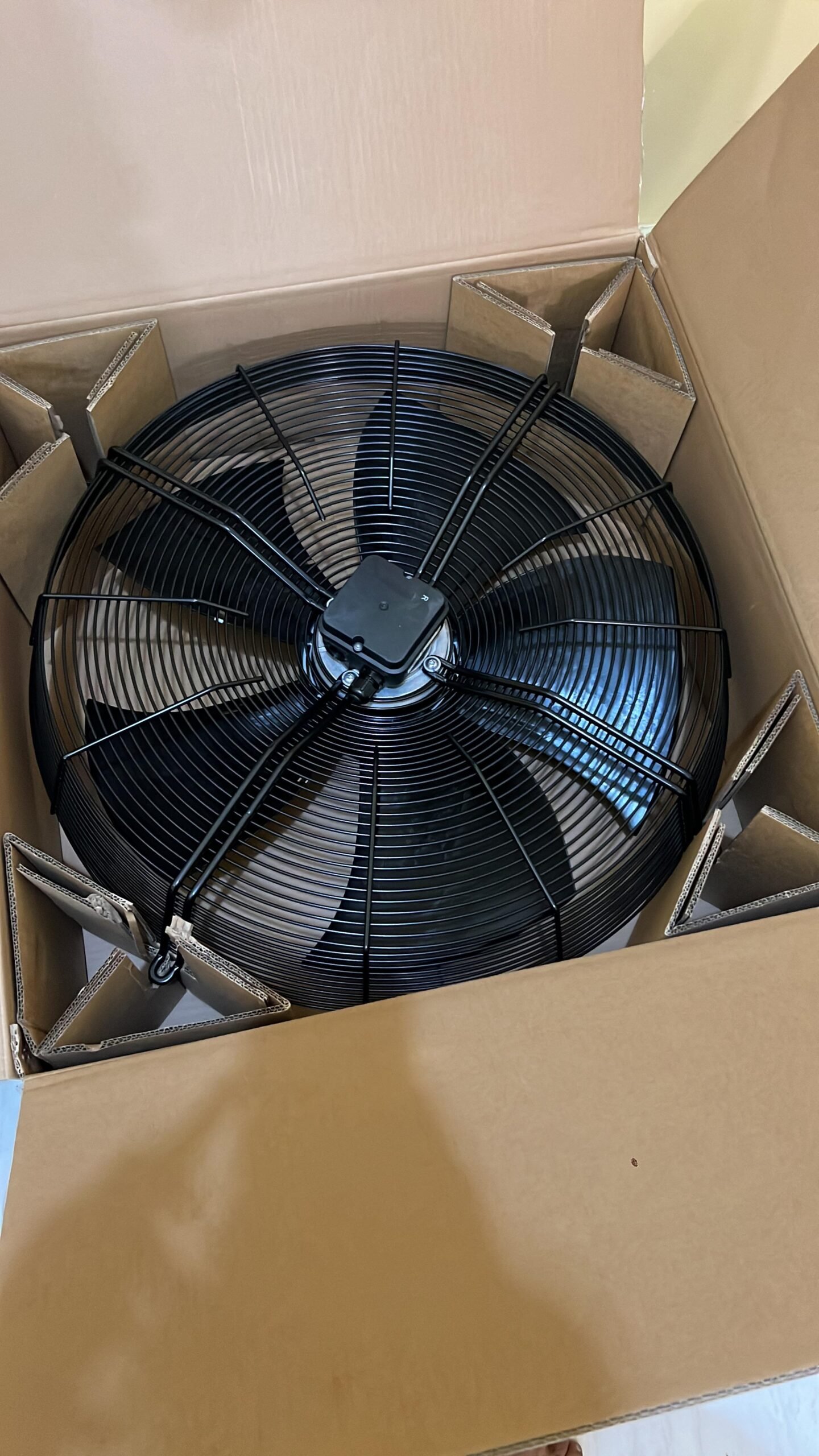

Key specifications

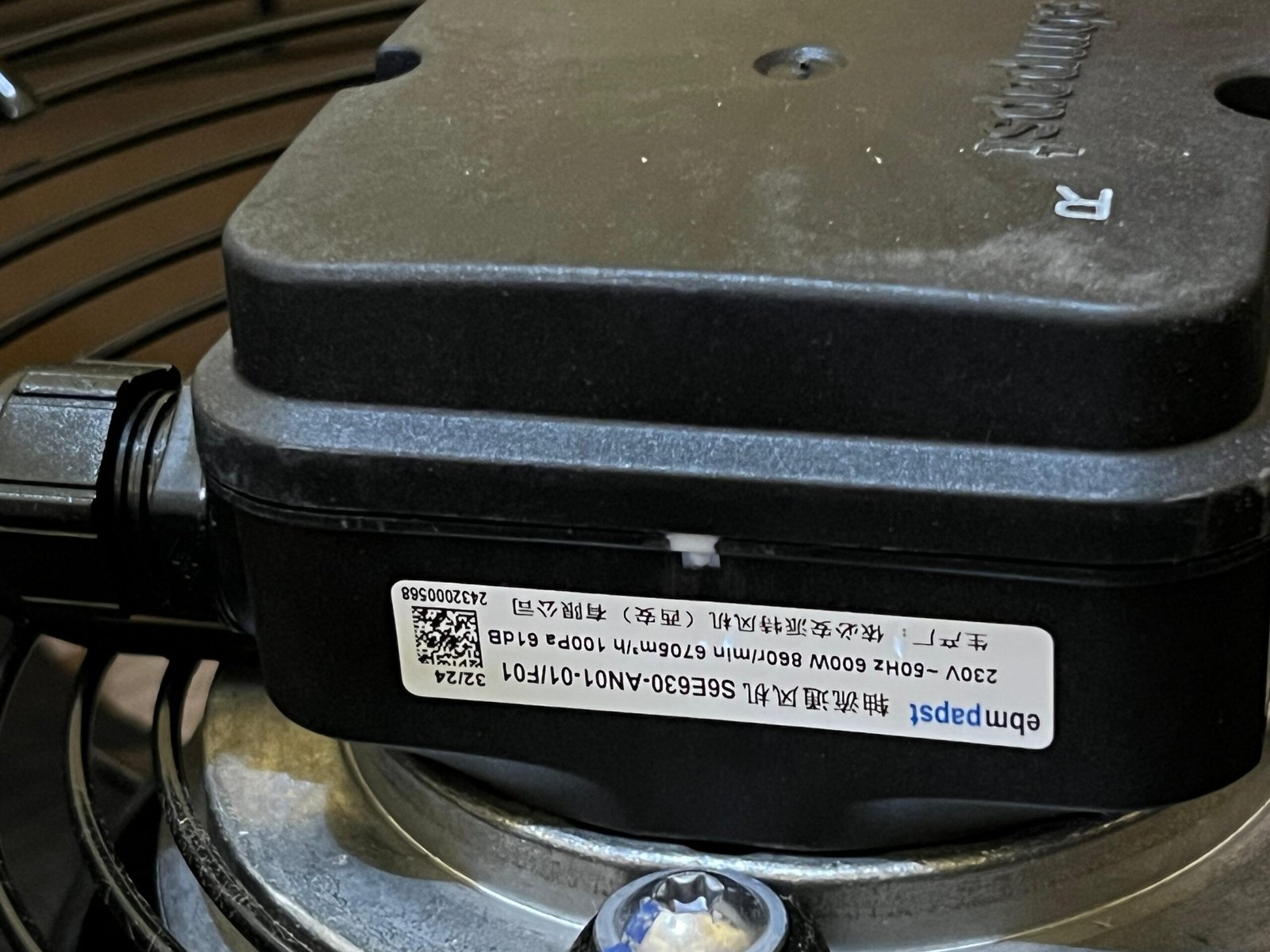

- Model: S6E630-AN01-01
- Manufacturer: EBM-Papst
- Type: AC axial fan
- Fan Diameter: 630 mm
- Power Supply: 230VAC, 1 phase, 50 Hz
- Power Input: 600 W
- Current: 2.62 A
- Speed: 860 rpm
- Air Flow: ~11025 m³/h
- Max. Back Pressure: 100 Pa
- Protection Type: IP54
- Weight: 14 kg
- Operating Temperature: -40 °C to 55 °C
Applications
- Refrigeration: Used in refrigeration systems.
- HVAC: Suitable for heating, ventilation, and air conditioning applications.
