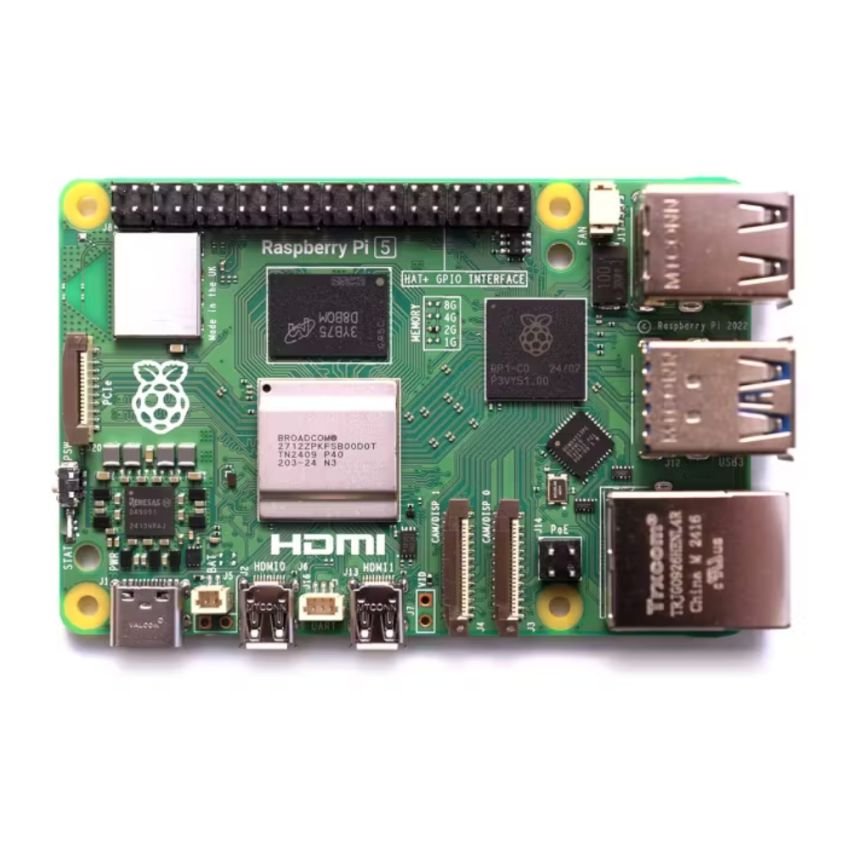

Raspberry Pi 5 Features
- Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation.
- RAM variants up to 8GB, providing the fastest, smoothest Raspberry Pi experience yet.
- Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache.
- VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2.
- Dual 4Kp60 HDMI® display output with HDR support.
- 4Kp60 HEVC decoder.
- LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available at launch).
- Dual-band 802.11ac Wi-Fi®.
- Bluetooth 5.0 / Bluetooth Low Energy (BLE).
- microSD card slot, with support for high-speed SDR104 mode.
- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation.
- 2 × USB 2.0 ports.
- Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT).
- 2 × 4-lane MIPI camera/display transceivers.
- PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter).
- 5V/5A DC power via USB-C, with Power Delivery support.
- Raspberry Pi standard 40-pin header.
- Real-time clock (RTC), powered from external battery.
- Power button.
