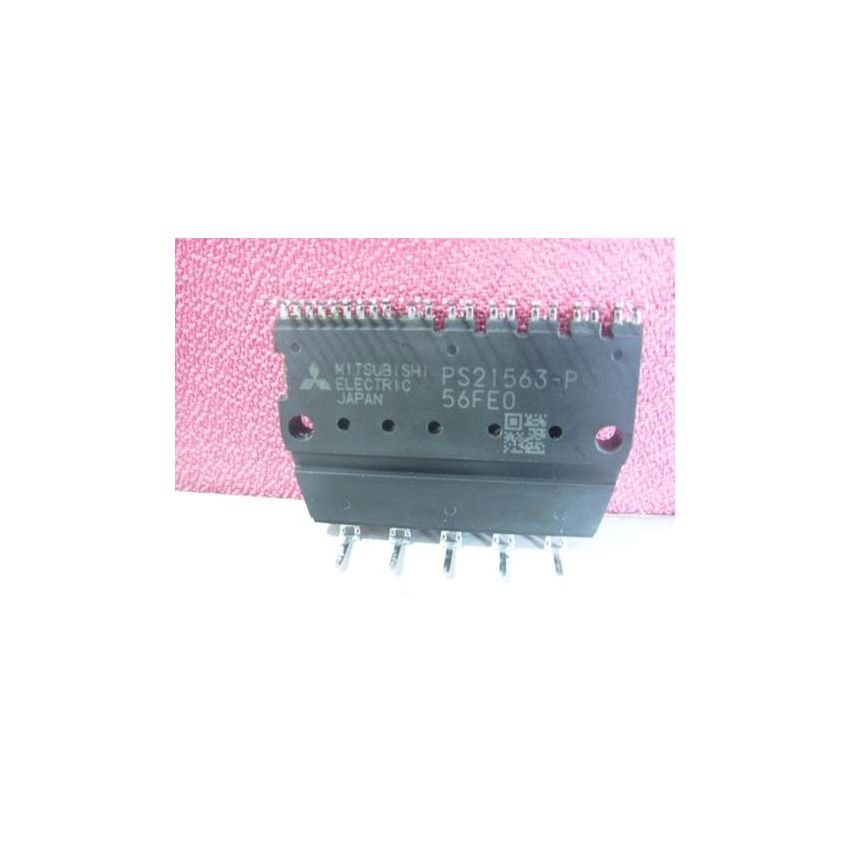

PS21563-P,Intelligent Power Module,600V,10A,DIP
- Integrated Power Functions: Features a 600V/10A low-loss 5th generation inverter bridge designed for three-phase DC-to-AC power conversion.
- Dual-In-Line Package: Compact and reliable transfer-mold type insulated package with integrated protection features.
- Protection Circuitry: Includes control supply under-voltage protection (UV), short-circuit (SC) protection, and fault signaling mechanisms.
- Input Compatibility: High-speed level shifting with 3.3V or 5V CMOS/TTL compatible input interface, supporting modern control systems.
- Applications: Ideal for AC100V~200V inverter drives, specifically for small power motor control.
- Operating Temperature: Can operate at a junction temperature of up to 125°C, ensuring stable performance under varied thermal conditions.
