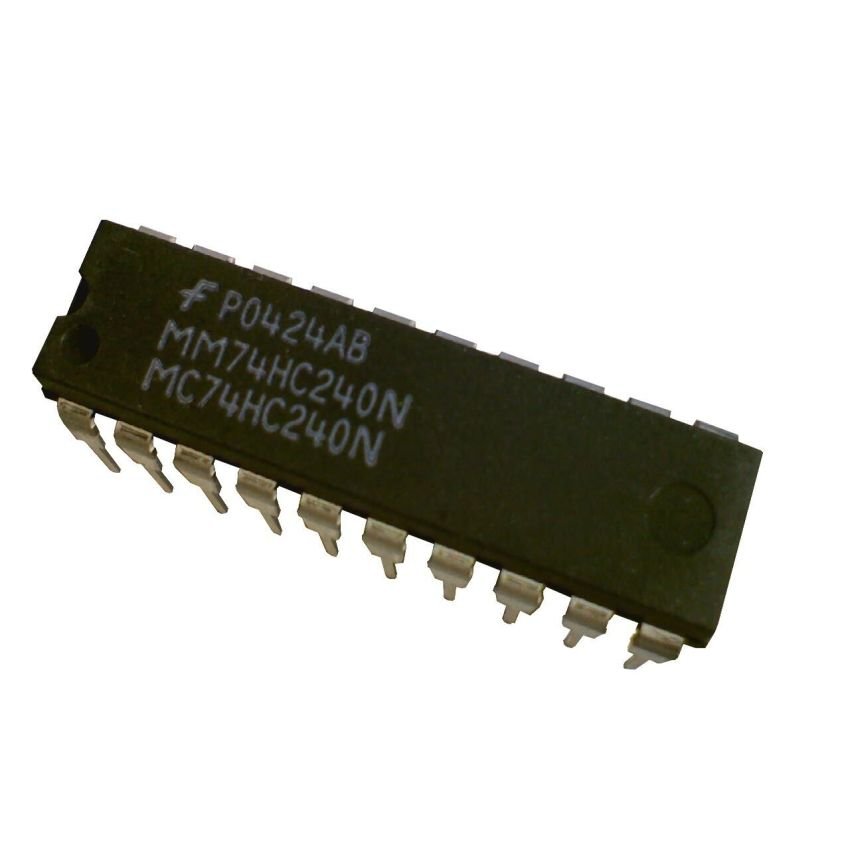

MM74HC240N Inverting Octal 3-STATE Buffer
- High-Speed CMOS Technology: Typical propagation delay of 12 ns, ensuring fast signal processing.
- 3-STATE Outputs: Facilitates connection to system buses without interference, allowing multiple devices to share the same bus.
- Wide Operating Voltage Range: Functions effectively between 2V and 6V, providing flexibility across various applications.
- Low Power Consumption: Quiescent supply current of 80 µA, making it suitable for power-sensitive designs.
- High Drive Capability: Capable of sourcing or sinking 6 mA at 5V VCC, suitable for driving standard TTL loads.
- Input Protection: Inputs are protected from damage due to static discharge by diodes to VCC and ground.
