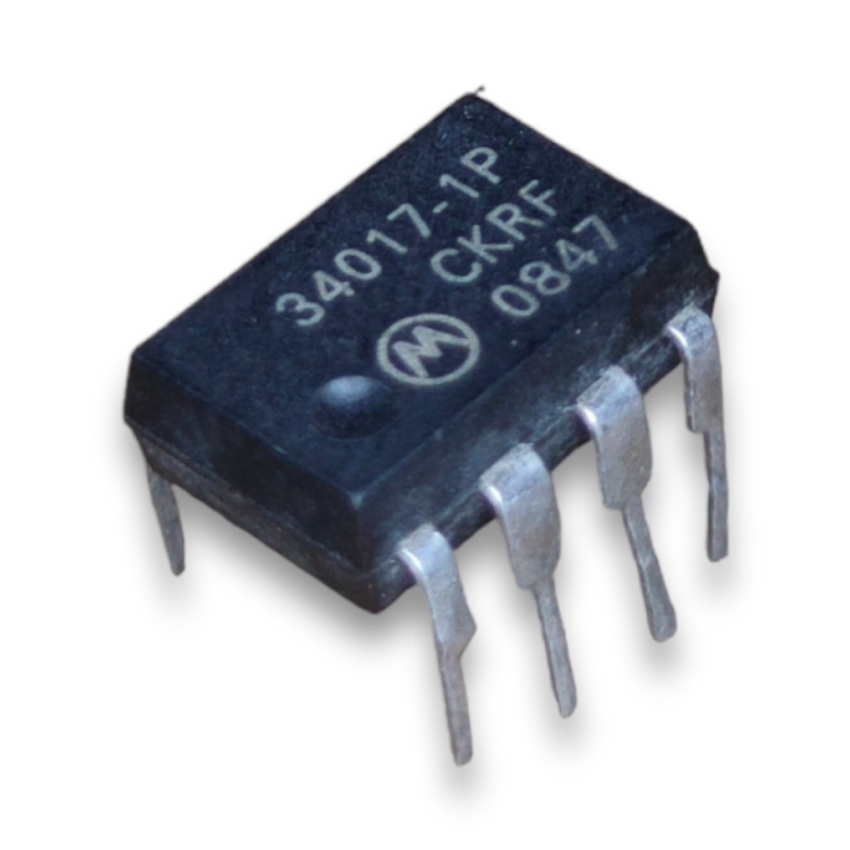

MC34017-1P, Telephone Tone Ringer IC, DIP-8
- Integrated Telephone Tone Ringer: Replaces mechanical telephone bells with a solid-state solution.
- On-Chip Polarity Protection: Features a built-in diode bridge, ensuring operation regardless of line polarity.
- Direct Piezoelectric Transducer Drive: Provides high-voltage waveform generation for driving piezo elements directly.
- Stable 1kHz Base Frequency: Generates a consistent ringer tone output without the need for an external oscillator.
- Compact DIP-8 Package: Designed for through-hole PCB mounting, ensuring easy integration.
- Low Power Consumption: Operates efficiently, making it ideal for low-power telephone circuits.
