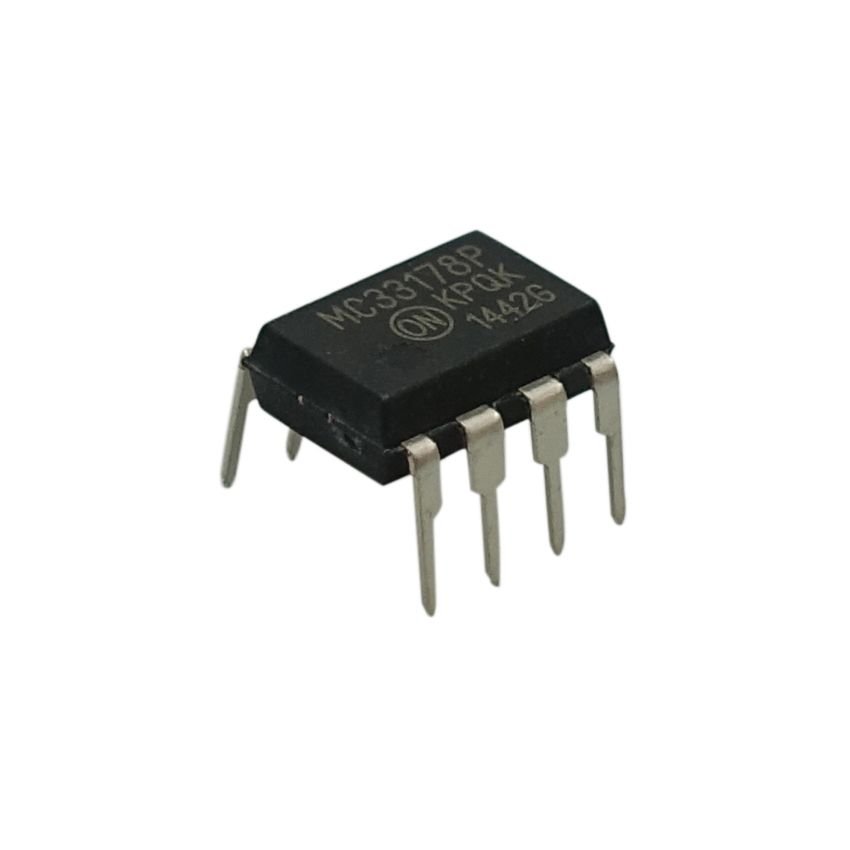

MC33178P

The MC33178P is a high-quality, low-power, and low-noise operational amplifier designed for applications requiring high precision and minimal signal distortion. This amplifier is ideal for audio applications, sensor interfaces, and high-performance signal processing. With a wide operating voltage range from 2.0V to 18V and a gain bandwidth product of 5 MHz, the MC33178P can handle demanding signal requirements with ease.

The dual-channel design offers excellent stability and low offset voltage (0.15 mV), which is essential for precision applications. This component is also equipped with ESD protection, ensuring resilience in rugged operating environments. Its high input impedance and low input bias current further enhance its suitability for sensitive measurement applications.

Key Features :

• Dual Output Drive Capability with 600Ω load.
• Total Harmonic Distortion (THD): 0.0024% at 1 kHz.
• Large Output Voltage Swing up to 14.1V.
• Wide Supply Range: 2.0V to 18V.
• Gain Bandwidth Product (GBW): 5 MHz.
• Low Offset Voltage: 0.15 mV (typ).
