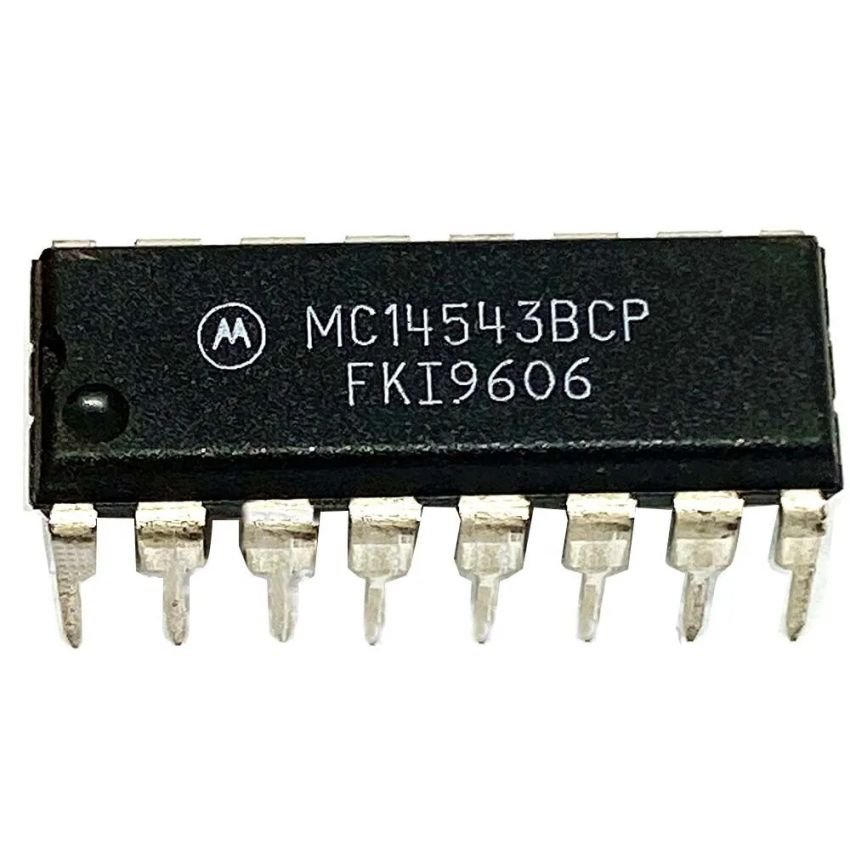

MC14543BCP BCD-to-7 Segment Latch/Decoder/Driver DIP-16
- BCD-to-7 Segment Decoder/Driver – Converts binary-coded decimal (BCD) inputs into 7-segment display outputs for numeric displays.
- Built-in Latch Storage – Holds BCD values, eliminating the need for continuous updates.
- Wide Voltage Range – Operates efficiently between 3V and 18V, making it compatible with a variety of logic circuits
- Direct LED Driving Capability – Can drive common anode or common cathode LED displays.
- Low Power Consumption – CMOS technology ensures minimal power usage for energy-efficient operation.
- DIP-16 Package for Easy Integration – Standard through-hole package for seamless PCB mounting and prototyping.
