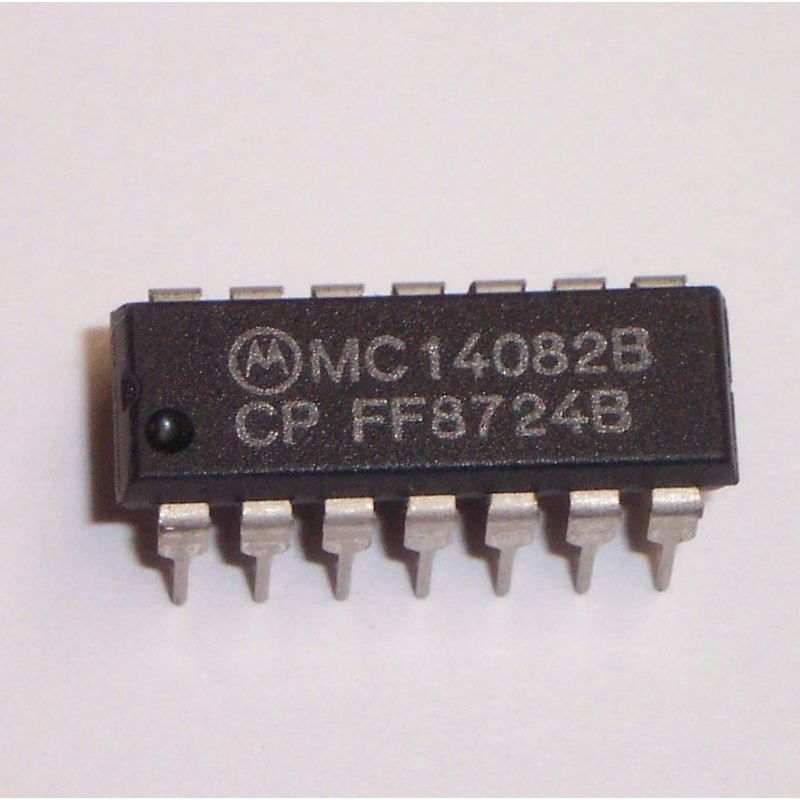

MC14082BCP DIP-14

Logic Function: AND
Logic Family: MC140
Number of Gates: 2 Gate
Number of Input Lines: 4 Input
Number of Output Lines: 1 Output
High Level Output Current: – 4.2 mA
Low Level Output Current: 4.2 mA
Propagation Delay Time: 300 ns
Supply Voltage – Max: 18 V
Supply Voltage – Min: 3 V
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: 125 C
Mounting Style: Through Hole
Function: AND
Height: 3.68 mm
Length: 19.56 mm
Logic Type: 4-Input AND
Operating Supply Voltage: 3.3 V, 5 V, 9 V, 12 V, 15 V
Product Type: Logic Gates
Quiescent Current: 1.5 nA
Width: 6.6 mm
Unit Weight: 1,620 g
