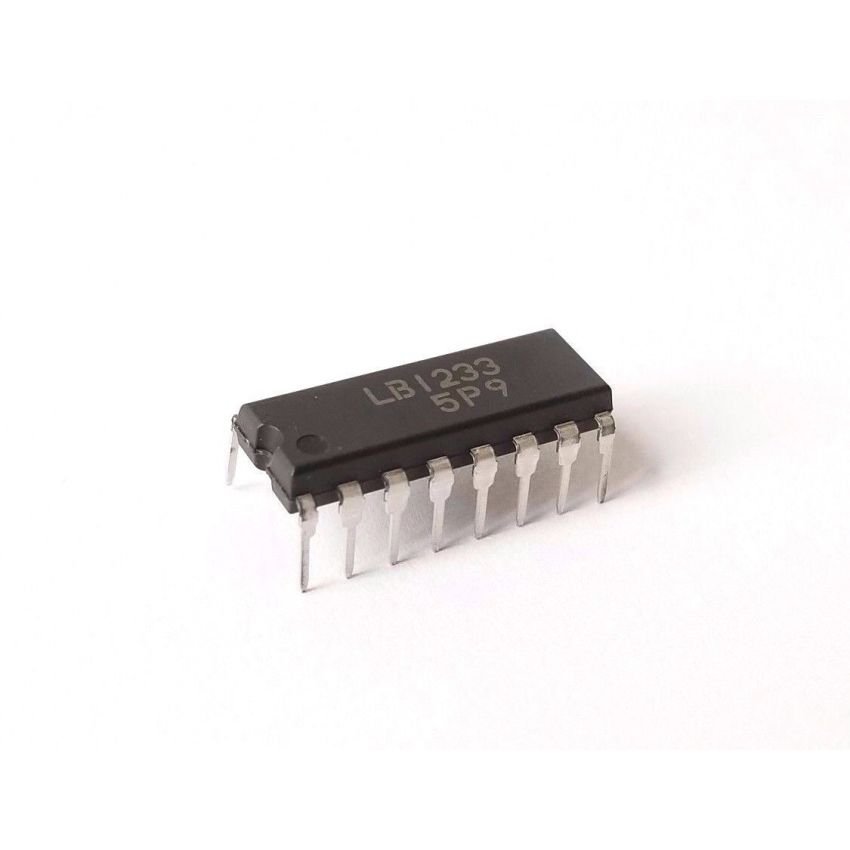

LB1233 High-Voltage High-Current Darlington Transistor Array
- High Voltage Tolerance: Capable of withstanding collector-emitter voltages (VCEO) of up to 50V, suitable for applications requiring higher voltage handling.
- High Current Capacity: Supports collector currents (IC) up to 500mA per channel, enabling control of high-current loads.
- Integrated Base Resistors: Each Darlington pair includes built-in base current limiting resistors, simplifying circuit design and reducing external component count.
- Direct Drive Compatibility: Designed for direct interfacing with TTL and CMOS logic outputs, facilitating easy integration into digital control systems.
- Integrated Flyback Diodes: Incorporates flyback diodes for inductive load protection, safeguarding the device and enhancing reliability.
- Compact Package: Available in a 16-pin Dual In-line Package (DIP16), optimizing board space and simplifying PCB layout.
