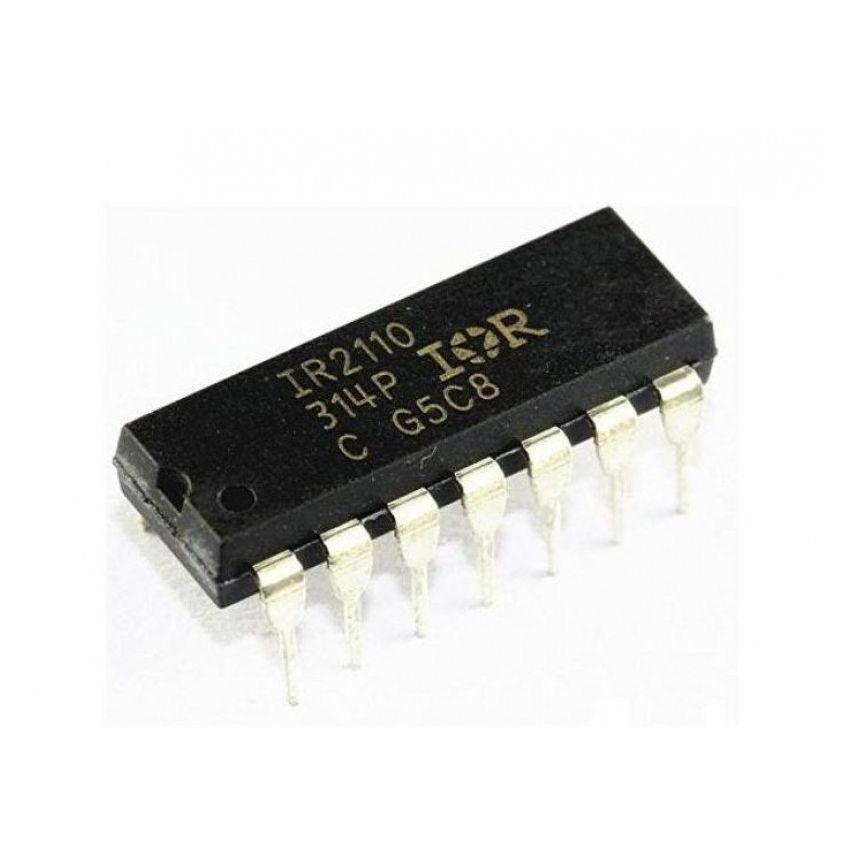

IR2110, High and Low Side Gate Driver IC,500V,DIP-14
- High Voltage Capability: Drives high-side and low-side MOSFETs or IGBTs up to 500V for the IR2110 and 600V for the IR2113.
- Undervoltage Lockout: Protects both channels, ensuring safe operation under low voltage conditions.
- Matched Propagation Delays: Ensures high-speed operation with minimal timing mismatches, ideal for high-frequency power applications.
- Wide Input Range: Operates with a gate drive supply from 10V to 20V and a logic supply voltage from 3.3V to 20V.
- High Output Drive Current: 2A sourcing and 2A sinking current capabilities for driving demanding power loads.
- CMOS/TTL Logic Compatibility: Compatible with 3.3V, 5V, and other standard logic levels.
