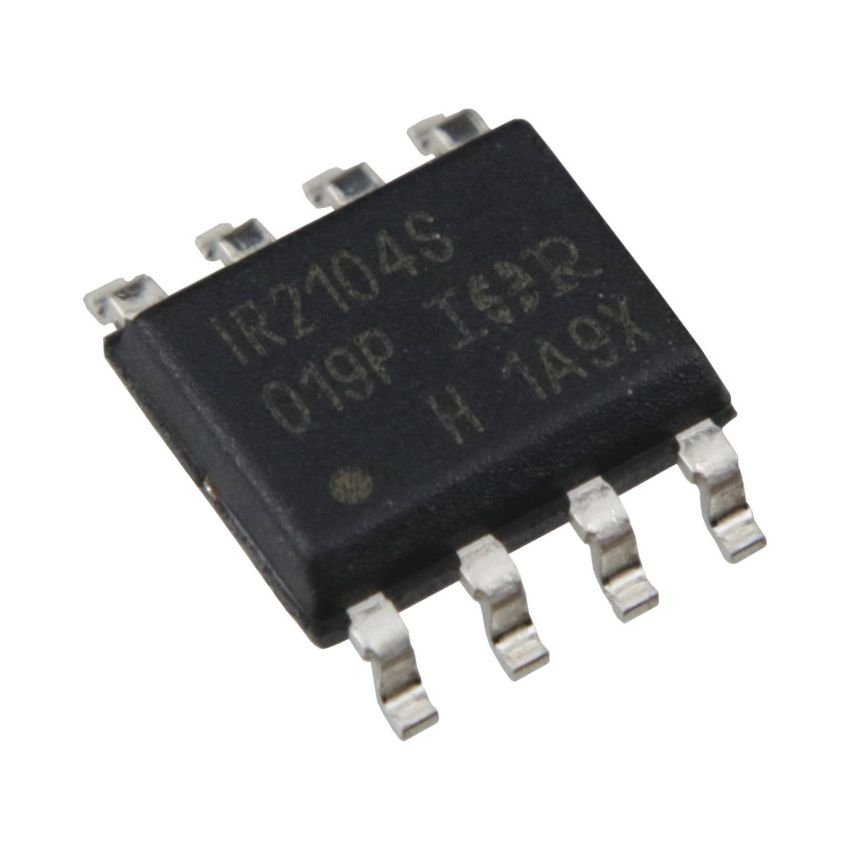

IR2104S
- High Voltage MOSFET/IGBT Driver: Supports high-side and low-side gate driver outputs with a maximum offset voltage of 600V.
- High-Speed Switching: Achieves fast switching speeds with turn-on/off times of 680ns and 150ns, respectively.
- Output Current: 130mA sourcing and 270mA sinking current capacity for efficient gate drive.
- Undervoltage Lockout: Integrated protection feature that prevents operation under insufficient voltage conditions.
- Dead-Time Control: Built-in 520ns dead-time to prevent cross-conduction, ensuring safe and reliable operation.
- Compact 8-Pin SOIC Package: Suitable for surface-mount designs with space constraints.
