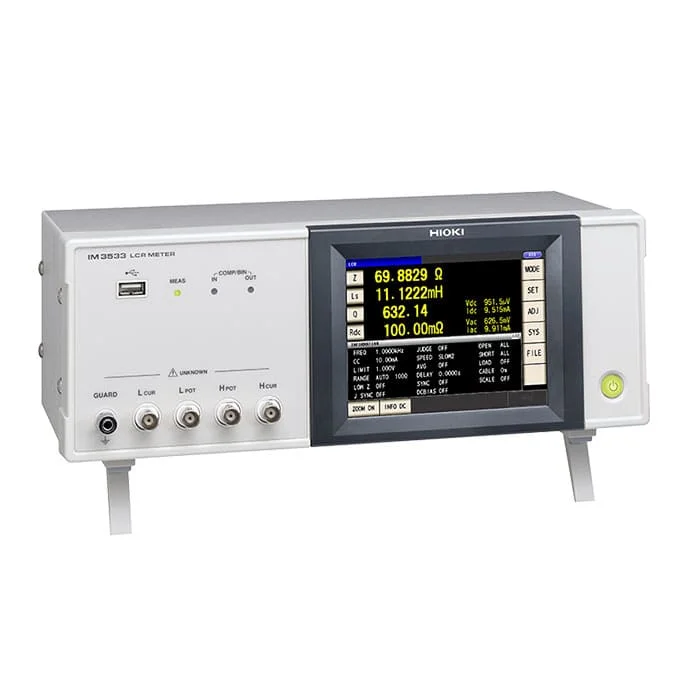

Hioki Im3533 Lcr Meter

±0.05% accuracy with a wide measurement range
(DC, 1mHz to 200kHz, 5mV to 5V, 10uA to 50mA)
Non-stop testing over mixed measurement conditions such as C-D and ESR at 10 times the speed of previous models
Built-in low impedance high precision mode effective for testing low inductance or the ESR of aluminum electrolysis capacitance
Dedicated modes for measuring transformer winding ratio, mutual inductance, and temperature-compensated DCR
Frequency sweep testing (IM3533-01 only)
2m/4m cable setting in addition to the standard 0m/1m
