Technical Specifications

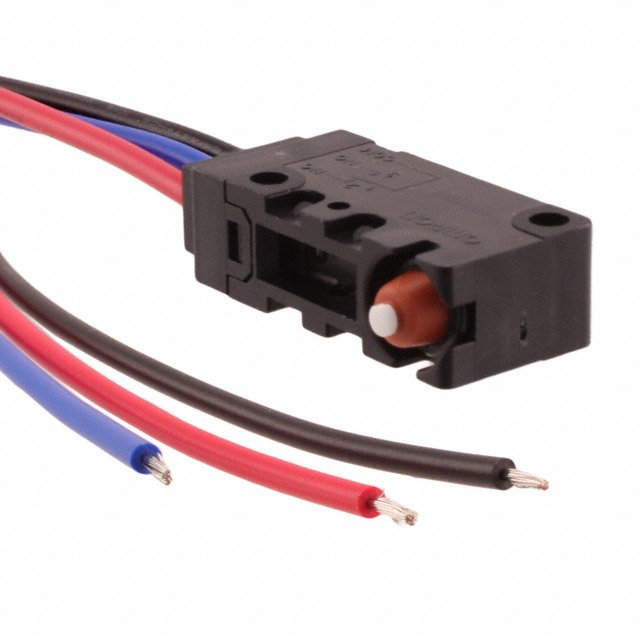

Omron D2VW-5-1M?technical specifications, attributes, and parameters.
| Physical | |
|---|---|
| Contact Material | Silver |
| Contact Plating | Silver |
| Mechanical Life | 10 Mcycles |
| Mount | Chassis Mount, Screw, Wire |
| Weight | 7 g |
| Technical | |
| Ambient Temperature Range High | 85 ?C |
| Contact Current Rating | 5 A |
| Contact Resistance | 100 m? |
| Current Rating | 5 A |
| Differential Travel | 406.4 ?m |
| Electrical Life | 100 kcycles |
| Insulation Resistance | 100 M? |
| Life (Cycles) | 100 kcycles |
| Max Current Rating | 5 A |
| Max Operating Temperature | 85 ?C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 125 V |
| Min Operating Temperature | -40 ?C |
| Operating Force | 1.96 N |
| Operating Position | 14.7066 mm |
| Orientation | Straight |
| Overtravel | 1.016 mm |
| Pretravel | 1.1938 mm |
| Switch Function | On-Mom |
| Termination | Wire |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125 V |
| Voltage Rating (DC) | 30 V |
| Dimensions | |
| Depth | 10.3 mm |
| Lead Length | 300 mm |
| Width | 10.3 mm |
| Compliance | |
| Radiation Hardening | No |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Unknown |
| RoHS | Compliant |
