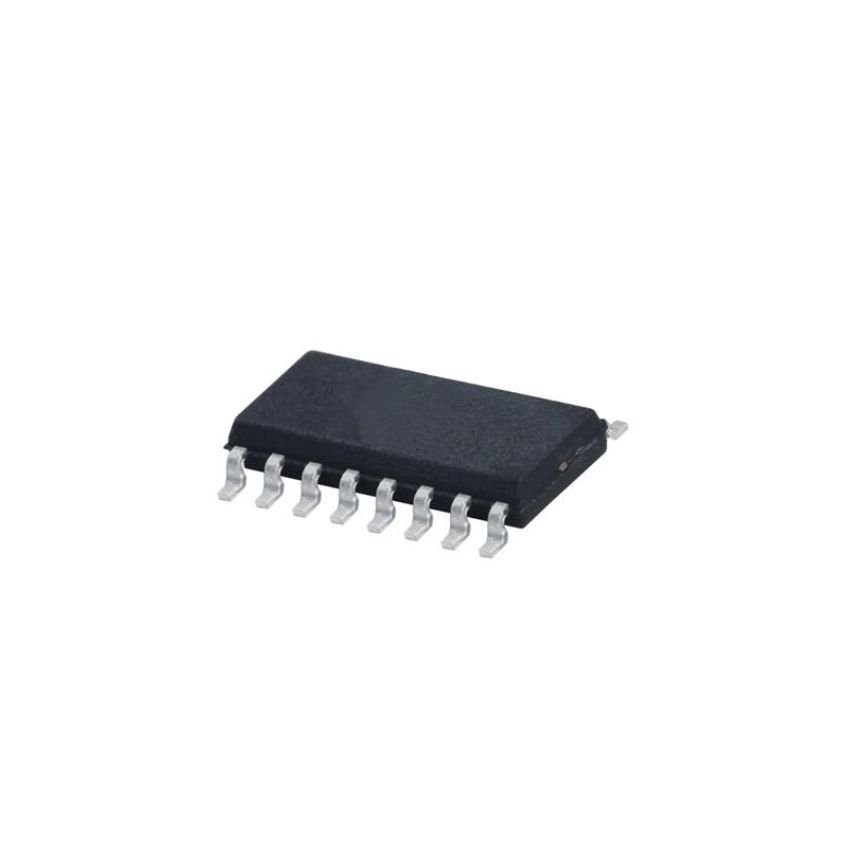

CD4511BM
- BCD to 7-segment decoder/driver with integrated data latch for stable outputs.
- Drives common-cathode 7-segment LED displays directly without additional logic.
- Wide supply range: Operates from 3V to 15V, compatible with most systems.
- Lamp Test (LT), Blanking Input (BI), and Latch Enable (LE) functions for extended display control.
- CMOS technology provides low power consumption and high noise immunity.
- SOIC-16 SMD packaging supports compact PCB layout and automated assembly.
