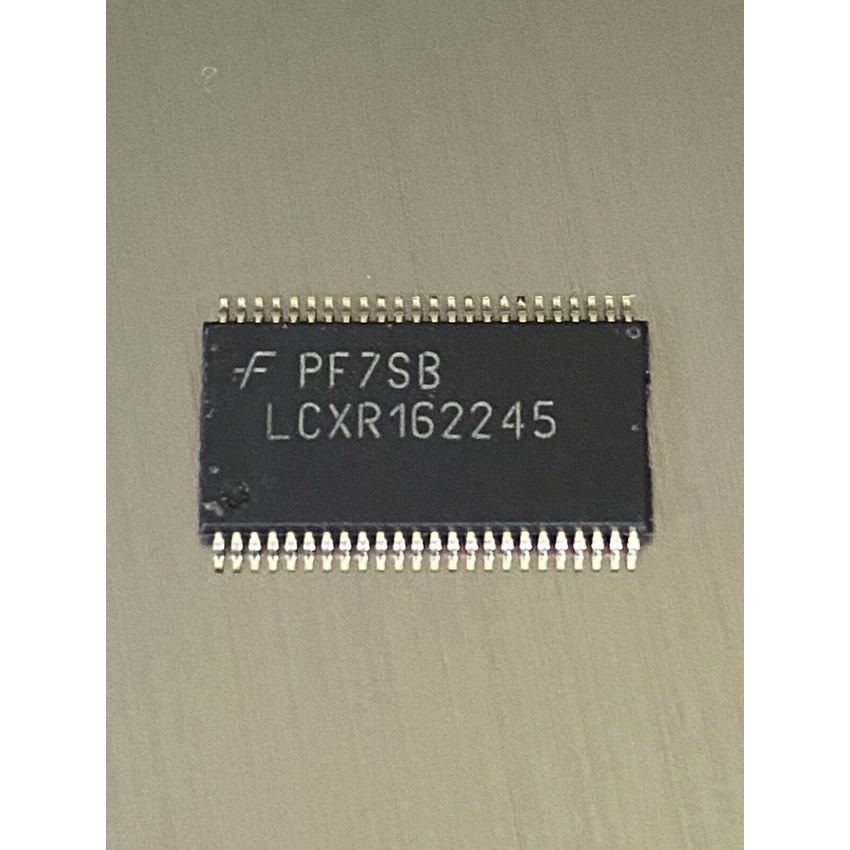

74LCXR162245
- 16-Bit Bidirectional Transceiver – Facilitates two-way communication between data buses.
- Low Voltage Operation – Designed for operation at 2.5V or 3.3V, with inputs and outputs tolerant up to 5V.
- Integrated Series Resistors – Features 26Ω series resistors in the outputs to reduce noise and signal reflections.
- 3-State Outputs – Allows multiple devices to share the same data bus without interference.
- Flow-Through Pinout – Simplifies PCB layout by aligning data inputs and outputs.
- Power-Down High Impedance – Ensures inputs and outputs remain in high impedance state during power-down, supporting live insertion and withdrawal.
