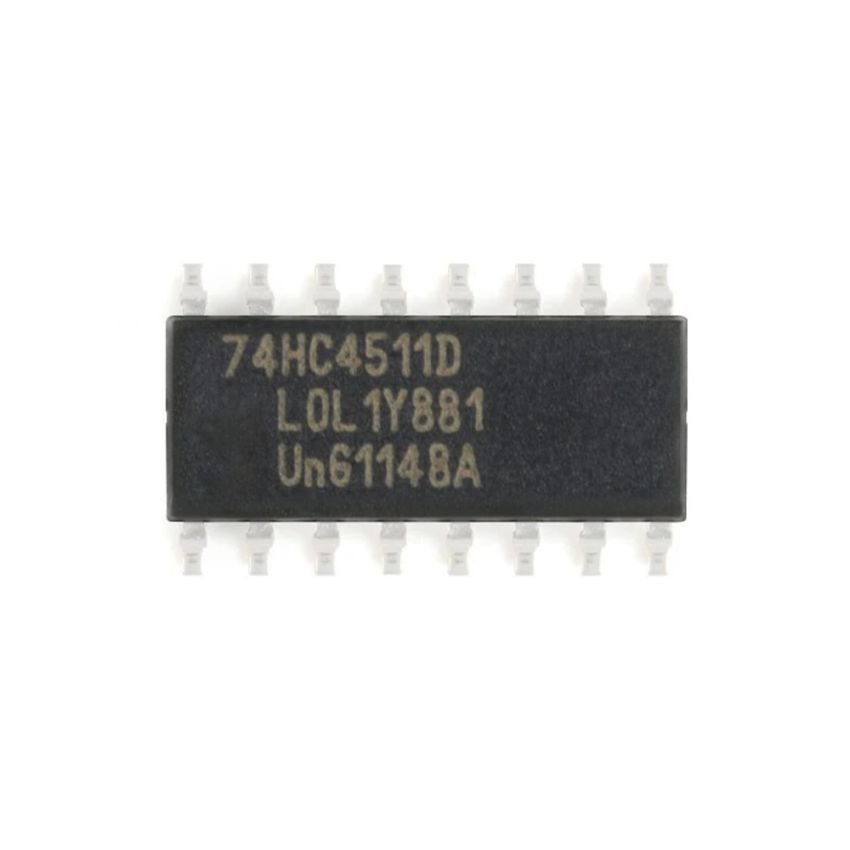

74HC4511D, BCD-to-7 Segment Latch,Decoder,Driver, SOIC-16
- BCD-to-7 Segment Latch/Decoder/Driver – Converts binary-coded decimal (BCD) inputs into 7-segment display outputs
- Latch Functionality – Allows data storage, ensuring stable display output without continuous updates.
- Wide Voltage Range – Operates between 2V and 6V, making it compatible with various logic systems.
- Lamp Test and Blanking Features – Includes LT (Lamp Test) to verify segment functionality and BI (Blanking Input) to turn off the display when needed.
- High Output Drive Capability – Designed to drive common-cathode LED displays directly.
- SOIC-16 Package for Compact Designs – Surface-mount package ensures efficient PCB space utilization.
