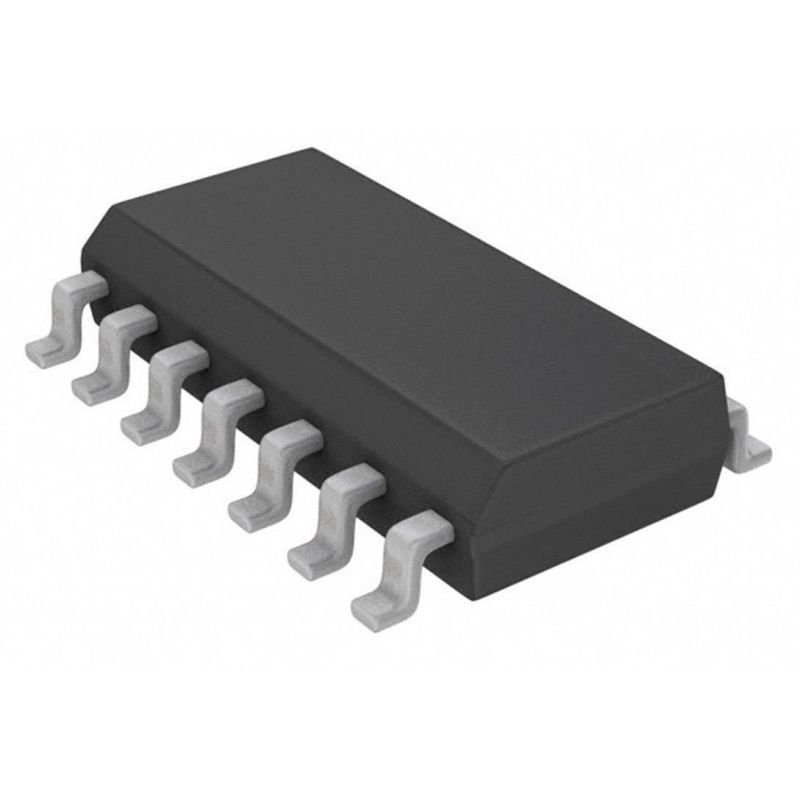

74HC10D – Logic Gates 74HC10D/SOT108/SO14

Product: Single-Function Gate
Logic Function: NAND
Logic Family: HC
Number of Gates: 3 Gate
Number of Input Lines: 9 Input
Number of Output Lines: 3 Output
High Level Output Current: – 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 9 ns
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: 125 C
Mounting Style: SMD/SMT
Package/Case: SOIC-14
Function: NAND
Height: 1.45 mm
Length: 8.75 mm
Logic Type: 3-Input NAND
Operating Supply Voltage: 5 V
Product Type: Logic Gates
Subcategory: Logic ICs
Width: 4 mm
Unit Weight: 100 mg
